We also offer various kind of other small hydro turbine generator
Axial flow tubine generator
Francis Turbine Generator
Pelton Turbine Generator
Inclined-jet water turbine generator
Cross flow water turbine generator
Tubular water turbine generator
Impulse type water generator
Permanent magnet generator

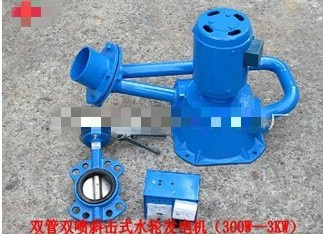

Common old style single nozzle inclined jet water turbine generator is only suitable for application of high water head and small flow. Dual pipe and dual nozzle inclined jet water turbine generators, of which power is from 300 W to 3 KW, are equipped with two pipes and to nozzles and are suitable for customers with medium/high water head and medium/low water flow. They are made for sufficient utilization of water source by switching of numbers of nozzles according to high/low water season and the actual power needed during operation. The output generated power will be multiply increased and reach that of two sets of machines with the same water head by just adjusting water flow. Permanent magnetic motor are manufactured using high-performance strong magnetic materials and are equipped with load regulator to automatically regulate load of the generators and to stabilize the output voltages
| Name | Power (KW) | Water head (M) | Flow(m³/S) | Rotating speed (R/M) | Voltage(V) | Frequency (Hz) | Transmission |
| Dual pipe dual nozzle incline jet water turbine generator | 0.3 | 5-10 | 0.0136-0.0068 | 1000 | 220 | 50 | Direct |
| 0.6 | 8-13 | 0.017_0.01 | 1000 | 220 | 50 | Direct |
| 1.0 | 10-16 | 0.021-0.0133 | 1000 | 220 | 50 | Direct |
| 1.5 | 12-20 | 0.025-0.015 | 1000 | 220 | 50 | Direct |
| 2.0 | 16-30 | 0.024-0.013 | 1000 | 220 | 50 | Direct |
| 3.0 | 18-40 | 0.031-0.014 | 1000 | 220 | 50 | Direct |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
