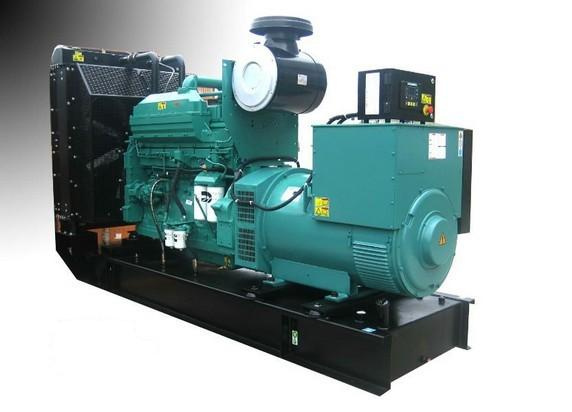

Cummins series generator set adopts cummins engines. As the largest foreign engine investor in China, Cummins possess Chongqing Cummins Engine Co., Ltd(produece M, N, K series 4-cycle water cooled diesel engine use in industry, Rate power from 224kw to 1086kw) and Dongfeng Cummins Engine Co., Ltd(produce B, C, L series, 4-cycle water-cooled diesel engine use in industry, Rate power from 24kw to 235kw), The global service network of Cummins can provide customers with reliable and guaranteed service.
Warranty
Since the diesel generator reached the agreed destination, its main parts will be guaranteed within 12 months or 1000 hours(subject to the earlier mature term). We take charge of all troubles caused by Gen-set's fault and repair according to the regulation stipulated by original plants. Factors not accordance with the regulation of original plants such as fragile parts, daily consumed components, wrong operating, lack of maintenance are not included in the quality guarantee.
|
50HZ |
Open Type Genset Model |
TCM27 |
TCM27 |
|
Silent Type Genset Model |
TCM27C |
TCM27C |
|
400/230V |
Prime Power (kW/kVA) |
21.6/27 |
21.6/27 |
|
Standby Power (kW/kVA) |
24/30 |
24/30 |
|
Phases / Factor |
3 PH/0.8pf |
3 PH/0.8pf |
|
Cummins |
Engine Model |
4B3.9-G1 |
4B3.9-G2 |
|
NO.of Cylinders |
4L |
4L |
|
Governor |
M |
E |
|
Aspiration |
NA |
NA |
|
Aspiration |
3.9 |
3.9 |
|
Alternator Model |
Leroy-somer (Genuine) |
LSA42.2M7 |
LSA42.2M7 |
|
Tide Alternator (100% Copper) |
TPA184M8 |
TPA184M8 |
|
New-age Stamford (Genuine) |
PI144F |
PI144F |
|
Fuel Consumption - 100% load at Prime Power - (L/h) |
6.7 |
6.7 |
|
Bases |
Base Fuel Tank |
8 Hours |
8 Hours |
|
Holes for Forklift |
Standard |
Standard |
|
Earthed Protection & Drain Outlet |
Standard |
Standard |
|
Base Fuel Tank Capacity (Litres / Silent type) |
240 |
240 |
|
Open Genset |
Length × Width × Height (meter) |
1.65*0.7*1.35 |
1.65*0.7*1.35 |
|
Weight (kg) |
560 |
560 |
|
Silent Genset |
Length × Width × Height (meter) |
2.8*1.0*1.5 |
2.8*1.0*1.5 |
|
Weight (kg) |
1250 |
1250 |
|
Engine |
4 stroke water-cooled Diesel engine |
Standard |
Standard |
|
Industrial / Residential Silencer |
Standard |
Standard |
|
Oil Sump Pump |
Optional |
Optional |
|
Water Jacket Preheater 220/240V |
Optional |
Optional |
|
Oil Preheater |
Optional |
Optional |
|
Standard Diesel / Oil / Air Filters |
Standard |
Standard |
|
Alternator |
AVR, IP23 Single Bearing, Class H insulation |
Standard |
Standard |
|
PMG |
Optional |
Optional |
|
Anti-condensing Heater & Alternator Preheater |
Optional |
Optional |
|
Winding Temperature Measuring Instrument |
Optional |
Optional |
|
Cooling Systems |
40°C Radiator & Shelter of Water Tank |
Standard |
Standard |
|
Coolant Integrated with Genset |
Optional |
Optional |
|
Starting Systems |
Start-up and Charging |
Standard |
Standard |
|
Batteries with Cables and Switch |
Standard |
Standard |
|
Control Systems |
Tide 2.0 |
Standard |
Standard |
|
Tide 3.0 |
Optional |
Optional |
|
Tide 4.0 |
Optional |
Optional |
|
Tide 5.0 |
N/A |
N/A |
|
Battery Charger |
Standard |
Standard |
|
Fuel Systems |
Automatic Refueling |
N/A |
N/A |
|
Breather Valve |
Standard |
Standard |
|
Fuel Level Meter |
Standard |
Standard |
|
Fuel Level Sensor - Alarm on the Panel |
Optional |
Optional |
|
Acoustic Enclosures & Canopy Configuration |
Quantity of Doors |
4 |
4 |
|
Outside Refueling |
Standard |
Standard |
|
Outside Watering |
Standard |
Standard |
|
Rainhat of Hush Pipe |
Standard |
Standard |
|
Lifting Lugs |
Standard |
Standard |
|
Ladders |
N/A |
N/A |
|
Emergency stop button Outlaid & Shock Absorbers |
Standard |
Standard |
|
Separate & Standing Control Cabinet |
Standard |
Standard |
|
Air Inlet & Air Outlet |
Standard |
Standard |
|
Inside Silencer |
Standard |
Standard |
|
Outside Silencer |
N/A |
N/A |
|
Fire EN/Atinguisher & Emergency Light |
N/A |
N/A |
|
Noise Level - dBA/1m & dBA/7m |
72/64.5 |
73/65.4 |
|
Materials with Gensets |
Parts Manual |
Standard |
Standard |
|
Genset & Engine & Alternator Manual |
Standard |
Standard |
|
Drawings & Diagrams & Warranty Form |
Standard |
Standard |
Qingdao Sanfengtai International Trade Co., Ltd. is a professional manufacturer and supplier of high quality diesel generator and accessories. The company has advanced production lines, sophisticated detection equipment, a complete quality management system, the number of highly qualified engineers and technicians. The business invloves all over the world.
Our factory is located in Dongying, Shandong province which has built a domestic advanced production line with functions of equipment, trial run and paint coating, and a modern laboratory of whole machine and accessories. The company always insists on the following quality policies and targets: Pushing the enterprise operating in the quality system which can be recognized by customes.
Keeping on the objectives of 'quality first, client supreme, all services for clients', Sanfengtai would like to create good future together with you.
