After-sales Service:
1 year or 1800 running hours subject to the earlier one.
Trade Terms of Products
Generator Warranty | 1800 hours or 1 year subject to the ealier one. |
Delivery Items | FOB,CNF,CIF,EXW,Delivery Guangzhou |
Delivery Time | 15-20 days after receiving advanced payment. |
Generator MOQ | 1PCS |
Package | PE Film+Pearl Wool+Iron Frame (standard export packing) |
Certificate | SGS;Cummins Authorized Factory;TUV;Soncap |
Port | Guangzhou,Shenzhen,Shanghai |
Payment | T/T Cash or Western Union |
Please give detail needs in your inquiry, so that we can make power solutions for you. |
Terms of Payment
1.T/T
2.Western Union
3.Cash
Contact Sales Manager
24 hours after-sales contact number: 0086 15817087202
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 40kVA
7. Weichai (China) 8kVA - 150kVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System

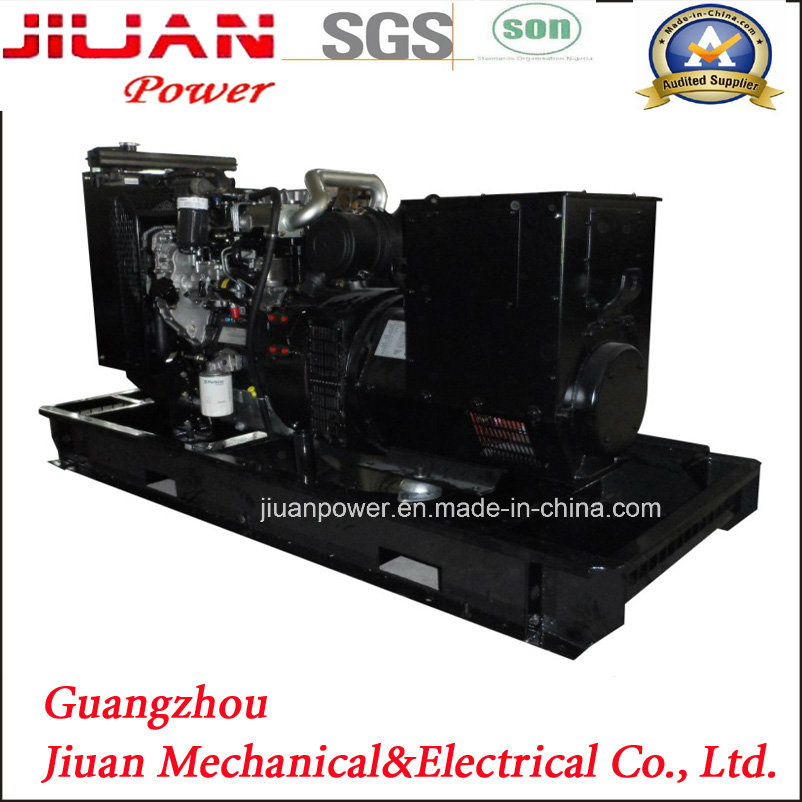

MODEL | CD-P12KW/15KVA |
Powered by PERKINS Engine |
Standby Power (50HZ) | 12KW/15KVA |
Prime Power (50HZ) | 11KW/14KVA |
Engine Model | Original Uk Perkins 403D-15G |
Engine Prime Power (50HZ) | 12.2KW |
Engine Standby Power (50HZ) | 13.5KW |
Speed | 1500rpm |
Cylinders | 3L |
Bore x Stroke | 84 x 90 mm |
Fuel Consumption(100% loading) | 3.6 L/H |
Displacement (L) | 1.496 |
Compression Ratio | 22.5:1 |
Cooling Method | Water - cooled |
Starting Method | 12V DC electrical start |
Alternator Model | LEADTECH OR STAMFORD 164C |
Voltage | 220V/380V |
Electric Current | 22A |
Power Factor | 0.8 |
Phase | 3-phases |
Brush/Brushless | Brushless |
Insulation Grade | H |
Protection Grade | IP23 |
G.W | 600 KGS |
Overall Size | 1680x900x1100 MM SILENT 2100*900*1200MM SUPER SILENT |
20FT | 12 PCS |
OPTIONAL | ATS(auto transfer switch) |
| Auto Battery Charger |
| AMF (auto mains failure) |
| SUPER SILENT |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
