We are the professional generator manufacturer with OEM factory in Guangzhou
Many style generators from stock 10kVA, 12kVA, 15kVA, 20kVA, 25kVA, 30kVA, 40kVA available
Description of Products

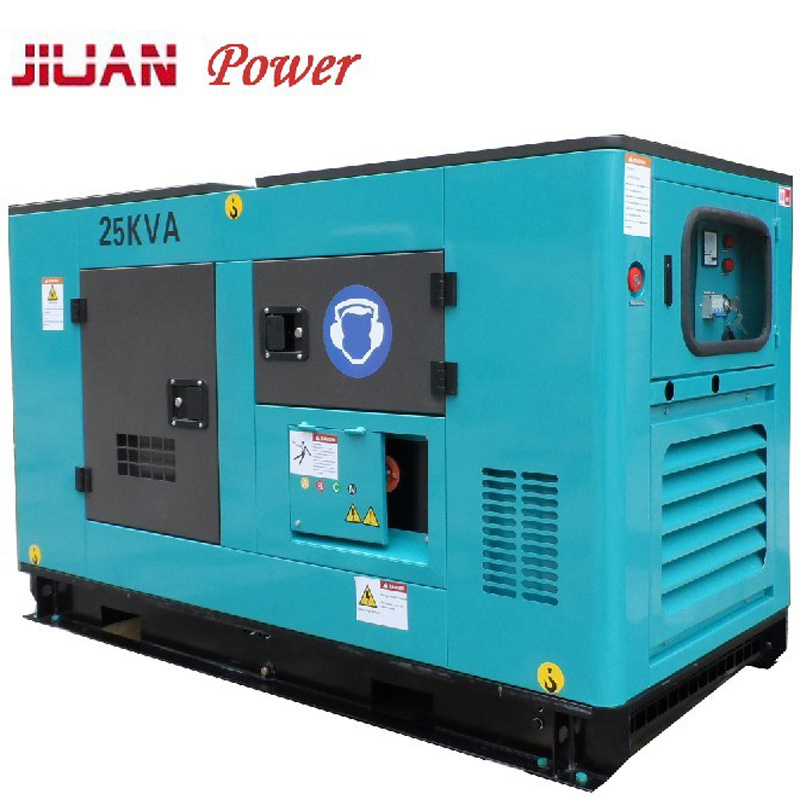

Generator Set Model | CDY-20kw/25kva |
Generator Set Power | 20kw/25kva |
Generator Powered by Yangdong Engine |
Diesel Engine Model | YD490L |
Engine Characters | Water-cooled, in line, 4-cYDle, direct injection, 1500rpm |
Bore x Stroke (mm) | 90x100 |
Rated Output | 25kw/31.5kva |
Fuel Consumption (g/kw.hr) | <262 |
Lube Consumption (g/kw.hr) | <2.72 |
Compression Ratio | 18 |
Starting | Electric (12V) |
ALTERNATOR MODEL | Stamford copy 184F |
Rated Power | 20kw/25kva brushless with AVR |
Voltage (V) | 220/380V 230/400V 240/415V 127/220V |
Current (A) | 35 |
FreYuency (Hz) | 50 |
Power Factor (cos¢) | 0.8 |
Brush/Brushless | Brushless |
Dimensions (LxWxH) mm | S: 1700x960x1060 |
Gross Weight (KGS) | 600 |
20FT | 12 PCS |
Controller | Smartgen 6110 or Deepsea 7320 |
Standard | Muffler |
| Battery 80A*1 |
Our Diesel Generator Set Production Range is as follows:
Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. (UK) 8kVA - 2000kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 50kVA
7. Weichai (China) 8kVA - 150kVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice (brushless with AVR)
1. Stamford Newage
2. Leroy Somer
3. Marathon
4. Leateck
After-sales Service
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611
Contact Sales Manager
24 hours after-sales contact number: 0086 15817087202
Terms of Payment:
1)T/T
2)Western Union
3)Cash
Standard configuration of China Yangdong generator design:
1.Original engine
2.Alternator coupled with Stamford alternator, copy Stamford alternator
3.Soundproof canopy, Super silent, open frame, Trailer mounted, Containerized
4.Controller Smartgen 6110
5.Circuit breaker CHNT
6.Base fuel tank 8 hours continuous running for soundproof type, 24 hours continuous running for super silent type.
7.Free-maintenance battery with Auto Battery Charger
8.Industrial silencer each 2 PCS per set with flexible exhaust hose.
Generator
1. Open type or silent type (soundproof type), Super Silent
2. Generator powered by Engine: Cummins, engine, Lovol, Deutz, WeiChai, Yangdong, ISUZU
3. Alternator: Stamford, Marathon, Leroy Somer etc
Good Reasons Why you Source JIUAN Generator
1)Professional Generator OEM factory in Guangzhou
2) 14 years experience in generator and exporting
3) 5Th year gold supplier in Alibaba
4) Products lines verified by professional inspectors
5) High quality products at affordable prices
6) Place orders safety
7) All engines are brand new and original - Credible
Trade Terms of Products
Generator Warranty | 1800 hours or 1 year subject to the ealier one. |
Delivery Items | FOB,CNF,CIF,EXW,Delivery Guangzhou |
Delivery Time | 15-20 days after receiving advanced payment. |
Generator MOQ | 1PCS |
Package | PE Film+Pearl Wool+Iron Frame (standard export packing) |
Certificate | SGS;Cummins Authorized Factory;TUV;Soncap |
Port | Guangzhou,Shenzhen,Shanghai |
Payment | T/T Cash or Western Union |
Please give detail needs in your inquiry, so that we can make power solutions for you. |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
