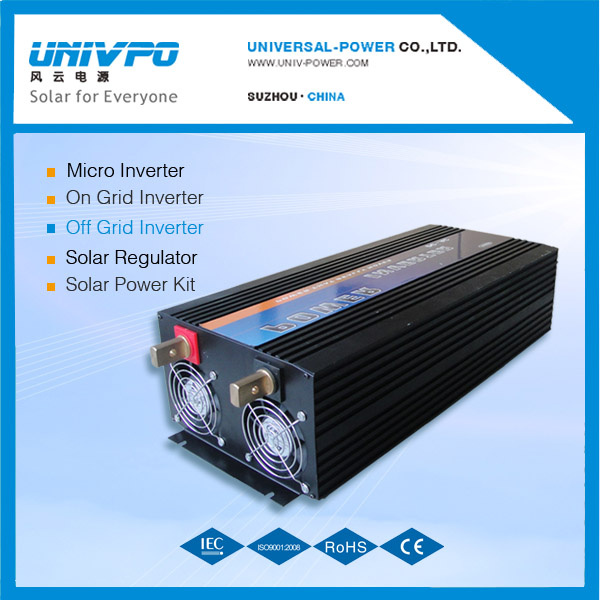

24V 48 Volt DC To 220V AC Sine Wave Power Inverter 5000W 24V 230V 5KW(UNIV-5000M)
Inverter Output Wave Form: Modified Sine Wave
LED indicators showing power, fault and charging status
Digital display showing DC voltage & load percentage
Hardwire Terminal Block
Wireless Remote
DC/AC Isolated
Pre-slotted mounting plate
Over-voltage shut down
Low-voltage alarm
Low-voltage shut down
Over-temperature shut down
Output short-circuit protection
DC reverse polarity protection by fuse
Cooling: Thermal fan
Model: UNIV-5000M
Input:
DC Voltage: 24V/48V
DC Connector: Cables With Clips
AC Voltage: 220V/230V
Continuous Power: 5000W
Surge Power: 10000W
Waveform: Modified Sine Wave
Frequency: 50Hz or 60Hz
AC Regulation: 5%
Efficiency: 90%
Protection:
Low Voltage Alarm: 21.8DC± 1V or 43.6VDC± 2V
Low Voltage Shut Down: 21DC± 1V or 42VDC± 2V
Over Load: Shut Off Output
Over Voltage Shut Down: 31V or 60V
Over Thermal: Shut Off Output Automatically
Fuses: Short Circuit
Environment:
Working Temperature: Between -10° C and +50° C
Working Humidity: 20%~90%RH non-condensing
Storage Temperature: Between -30° C and +70° C
Package:
Machine Size(mm): 560X210X160
Packing Size(mm): 770X330X290
Net Weight(kgs): 16
Gross Weight(kgs): 17
Packing Mode: Carton
Other:
Start: Soft Start
Style of Cooling: Thermal Fan
Advantages of our inverters:
1. Inside transformer with high quality ferrite core, which takes high efficiency to our inverters
2. PCB assembling is SMD in stead of hand-made
3. World-brand key components (Mosfet, IGBT etc. ) ensure the units working stable.
4. Specialized PCB design, reasonable product configuration makes the units with less Electro Magnetic Interference and more reliability
5. Good loading ability by special micro-processor design
6. We can customize the inverter as the customer special requirement.
