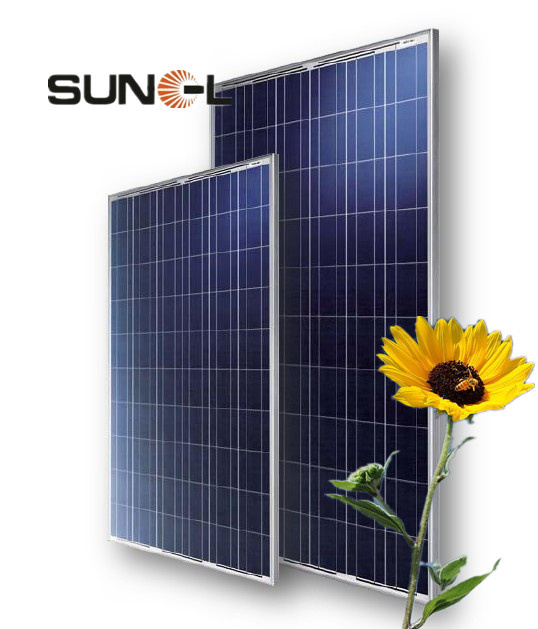

240W Polycrystalline Solar Module / Solar Panel / PV Module / PV Panel TUV/IEC/CE certified
FEATURES
`Long Service Life
`High Efficiency Solar Cells
`Special Aluminum Frame Design
`High Transmission, Low Iron Tempered Glass
`Advanced Cell Encapsulation
APPLICATIONS
`Solar power stations
`Rural electrification, Small home power systems
`Power supply for traffic, security, gas industry
`12V and 24V battery charging system
`Other industrial and commercial applications
Module |
|
Type (60 series) |
Encapsulation |
|
Glass/EVA/Cells/EVA/TPT |
Parameters |
|
SNM-P200 |
SNM-P205 |
SNM-P210 |
SNM-P215 |
SNM-P220 |
SNM-P225 |
SNM-P230 |
SNM-P235 |
SNM-P240 |
Max power |
Pm(W) |
200W |
205W |
210W |
215W |
220W |
225W |
230W |
235W |
240W |
Tolerance |
|
+/-3% |
Open circuit voltage |
Voc(V) |
35.3 |
35.3 |
36.0 |
36.0 |
36.0 |
36.6 |
36.6 |
37.2 |
37.2 |
Short circuit current |
Isc(A) |
7.58 |
7.77 |
7.82 |
8.01 |
8.19 |
8.24 |
8.34 |
8.46 |
8.65 |
Max. power voltage |
Vmp(V) |
28.5 |
28.5 |
29 |
29 |
29 |
29.5 |
29.5 |
30 |
30 |
Max. power current |
Imp(A) |
7.02 |
7.19 |
7.24 |
7.41 |
7.59 |
7.63 |
7.79 |
7.83 |
8.0 |
Practical Module Efficiency |
η c(%) |
12.2% |
12.5% |
12.8% |
13.1% |
13.4% |
13.7% |
14.1% |
14.3% |
14.7% |
Dimensions |
(L*W*H) |
1650× 992× 45mm |
Net Weight |
(kg) |
19.5 |
Max. system voltage |
(V) |
1000V DC |
Operate Temp. Scope |
|
-40/+85' |
Resistance |
|
227g steel ball fall down from 1m height and 120m/s wind |
Warranty |
|
Pm is no less 90% in 10 years and no less 80% in 25 years |
STC |
|
(Standard Test Condition: 1000W/m2, AM1.5, and 25' ) |
Zhejiang Sunenergy Co., Ltd is a professional solar products manufacturer and sales in China. The company began the production of solar photovoltaic R & D since 2002. It consists of a group of professionals with a lot of experience and long careers in the field of photovoltaic energy.
Now the production line is in capacity of 120 MW per year. Besides., our factory also was bulit the production line of controller and inverter major solar products series in 2005.
Our factory can supply the solar panel both mono solar panel and poly solar panel, solar controller, solar inverter and design the solar system. Sun Energy has obtained its CE. Rosh. TUV. IEC certifications for its core modules...
With Company in Shanghai, China and Hong Kong branches and offices and Agency in Indonesia, We have taken part in the large project in European countries and USA possitively since the year of 2007 and have made our products well accepted in these regions.
Sun energy will bring you a new business success!
