1, ISO, TUV and CE approvaled

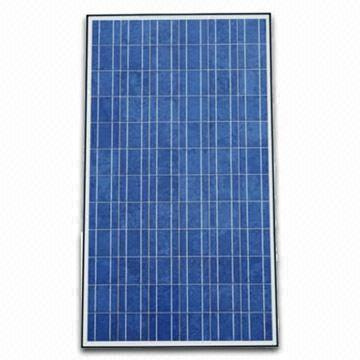

2, 230W High efficiency Polycrystalline PV module
3, Polycrystalline cell with high efficiency
Characteristics
230W Polycrystalline PV module with high efficiency, long life, easy installation, high wind and hail impact resistance etc advantages.
Warranty for 25 years, 90% of original efficiency in 10 years, 80% in 25 years.
Item No. SPV-230P
Maximum Power(W) 230W
Maximum Voltage(V) 29.7V
Maximum Current(A) 7.74A
Open-Circuit Voltage VOC(V) 36V
Open-Circuit Current ISC(A) 8.36A
Noct 47° C
Temperature Cofficient of Isc(%/° C) 0.05
Temperature Cofficient of Voc(%/° C) -0.03
Temperature Cofficient of PMP(%/° C) -0.45
Tolerance ± 3%
Max System Voltage(V) 1000VDC
STC: T=25, A=1.5, E=1000W/M2
Mechanical Data
Dimension 1650*992*50mm
Net Weight 16.8KG
No. Of Cells and Connections 54(6*9)
Cell Polycrystalline Cell 156*156mm
Operating Temperature -40° C to +85° C
Storage Temperature -40° C to +85° C
Packing 560PCS/40ft container
