1; ISO, TUV and CE approved

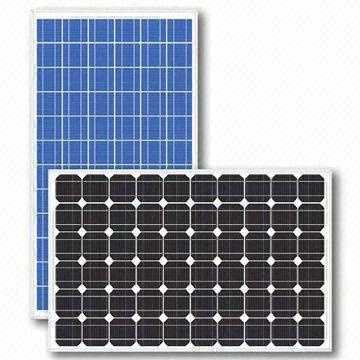

2; 80W High efficiency polycrystalline PV module
3; Polycrystalline solar cell with high efficiency
Characteristics
80W polycrystalline PV module with high efficiency, long life, easy installation, high wind and hail impact resistance etc advantages.
Warranty for 25 years, 90% of original efficiency in 10 years, 80% in 25 years.
Item No. SPV-80P
Maximum Power(W) 80W
Maximum Voltage(V) 17.6V
Maximum Current(A) 4.54A
Open-Circuit Voltage VOC(V) 21.8V
Open-Circuit Current ISC(A) 4.9A
Noct 47° C
Temperature Cofficient of Isc(%/° C) 0.05
Temperature Cofficient of Voc(%/° C) -0.03
Temperature Cofficient of PMP(%/° C) -0.45
Tolerance ± 3%
Max System Voltage(V) 1000VDC
STC: T=25, A=1.5, E=1000W/M2
Mechanical Data
Dimension: 1195*550*30mm
Net Weight: 8KG
No. Of Cells and Connections: 36(4*9)
Cell
Polycrystalline Cell 156*156mm
Operating Temperature: -40° C to +85° C
Storage Temperature: -40° C to +85° C
Packing: 1000PCS/40ft container
