1; ISO, TUV and CE approved
2; 130W High efficiency polycrystalline solar module
3; Polycrystalline solar cell with high efficienc
Characteristics

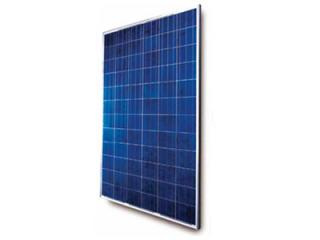

130W polycrystalline solar module with high efficiency, long life, easy installation, high wind and hail impact resistance etc advantages.
Warranty for 25 years, 90% of original efficiency in 10 years, 80% in 25 years.
Item No. SPV-130P
Maximum Power(W) 130W
Maximum Voltage(V) 17.8V
Maximum Current(A) 7.3A
Open-Circuit Voltage VOC(V) 22.1V
Open-Circuit Current ISC(A) 7.89A
Noct 47° C
Temperature Cofficient of Isc(%/° C) 0.05
Temperature Cofficient of Voc(%/° C) -0.03
Temperature Cofficient of PMP(%/° C) -0.45
Tolerance ± 3%
Max System Voltage(V) 1000VDC
STC: T=25, A=1.5, E=1000W/M2
Mechanical Data
Dimension: 1470*670*35mm
Net Weight: 12KG
No. Of Cells and Connections: 36(4*9)
Cell
Polycrystalline Cell 156*156mm
Operating Temperature: -40° C to +85° C
Storage Temperature: -40° C to +85° C
Packing: 700PCS/40ft container
Henan shengshi PV energy tech. Co., Ltd. is a high-tech enterprise of solar photovoltaic products with the collection of r&d, manufacture and corresponding sale. Now, we mainly take part in the production of solar cells and solar panels, PV technological development and sale, PV system integration, power equipment sale and a wide range of panels from 10w to 320w, and can meet all kinds of applications.
Our company not only has a flexible mechanism, a complete structure and a prompt service network, but also has a powerful team in solar photovoltaic industry, including a number of senior professional technicians and management personnel with many years' photovoltaic experience. We will enforce our management, and constantly expand the scale of the industry to create a favorable public image.
