(1) Main technical data as follows:
(2) 1. Machine Type:
Vertical-axis wind turbine(3) 2. Blade form: C-shaped
(4) 3. Blade number:5 pcs
(5) 4. Blade material: glass fiber reinforced plastic
(6) 5. Type of generator: permanent-magnet direct drive 3 phase AC
(7) 6. Type of tower: guy wire or free standing
(8) Power: 15KW
(9) Blade diameter (m): 9.0
(10) Rated Rotated speed(r/min): 100
(11) Rated speed (m/s): 11
(12) Rated power: 15KW
(13) Max power: 20KW
(14) Output voltage (v): 380
(15) Start up wind speed (m/s): 2
(16) Work speed (m/s): 3-25
(17) Security wind speed(m/s):50
(18) speed regulation: charger and inverter
(19) Capacity and quantity of battery: 12V200AH30 pcs
(20) Can supply power for: Small villages, Air conditioners, Refrigerators, Water pumps, Cookers, Color television sets, Washing machines, Lighting, Electric fans, and Charge.Life span:20-25 years;
| Power | 20KW |
| Blade diameter | 10.0m |
| Rated rotor speed | 120r/min |
| Rated speed | 10m/s |
| Rated Power | 20KW |
| Max Power | 30KW |
| Output voltage | 380V |
| Start up wind speed | 3(m/s) |
| Work speed | 3-30(m/s) |
| Security wind speed | 50(m/s) |
| Height of tower | 18(m) |
| Top weight except tower | 700kg |

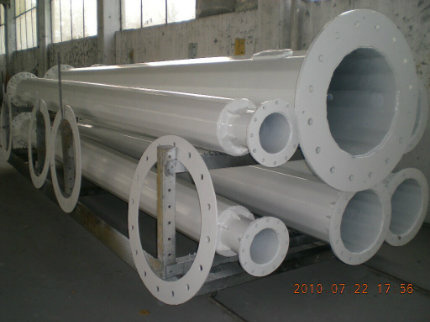

| Tower type | ø325mm steel tube |
| Output controller system | Controller , Inverter |
| Suggested batteries and it's capacity | 56PCS 12V200AH |
| Can supply power for | VILLAGE,AIR-CONDITIONER,REFRIGERATOR,WASHING MACHINE,WATER PUMP,ELECTRIC PAN, TV,LIGHTING,ELECTRIC FAN, CHARGER AND COMPUTER |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
