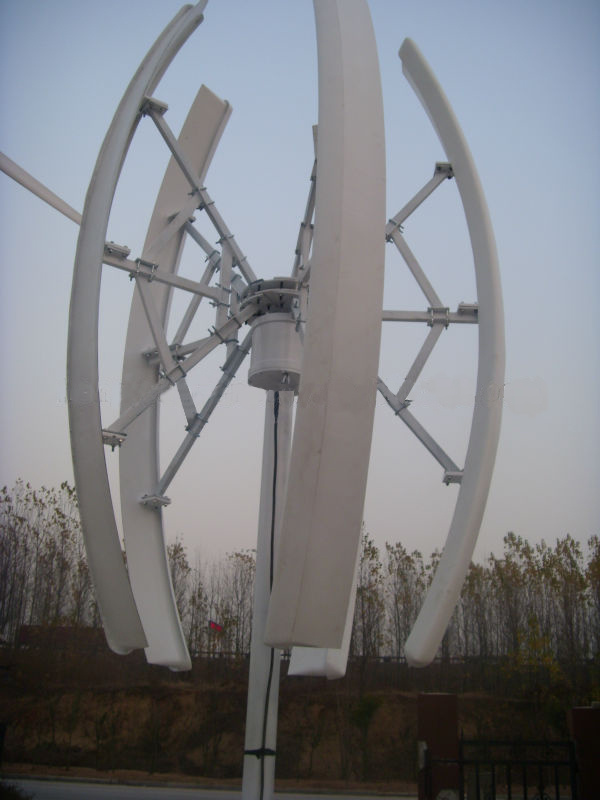

20kw Vertical Axis Wind Turbine/Wind Generator System

 Specifications
1. Pre-yaw design
2.Low rated torgue,low request to air conditions
3.Maintenance-free
4.Passed CE
5.Delivery fast


1. Blade Form: propeller
2. Blade number: 5 pcs
3. Blade material: glass fiber reinforced plastic
4. Type of generator: permanent-magnet direct drive 3 phase AC
5. Type of tower: guy wire or free standing
6. Output Waveform of inverter: Pure Sine Wave

Power	20KW
Blade diameter	10.0m
Rated rotor speed	120r/min
Rated speed	10m/s
Rated Power	20KW
Max Power	30KW
Output voltage	380V
Start up wind speed	3(m/s)
Work speed	3-30(m/s)
Security wind speed	50(m/s)
Height of tower	18(m)
Top weight except tower	700kg
Tower type	ø325mm steel tube
Output controller system	Controller , Inverter
Suggested batteries and it's capacity	56PCS 12V200AH
Can supply power for	VILLAGE,AIR-CONDITIONER,REFRIGERATOR,WASHING MACHINE,WATER PUMP,ELECTRIC PAN, TV,LIGHTING,ELECTRIC FAN, CHARGER AND COMPUTER

Our product advantage:

1.Wind turbine blades: We utilize high strength glass fibre reinforced plastic and epoxy resin to make blades. Low Noise. No need to adjust and good quality of balance. No shaking. High strength, fatigue resistance.
This kind of new aerofoil is elaborately designed by aerodynamic and hydromechanical engineers.Its start-up wind speed or cut-in wind speed is very low, and the wind energy coefficient is very high.

2.Generator:It is made up of the superior high strength permanent magnetic material. We use high grade NdFeB permanent magnet for generator. The magnetic sheet is Neodymium iron boron not ferrite. Neodymium iron with long life time than ferrite and not easy be demagnetized. The stator is made of 470 silicon steel sheet not iron sheet. The generating electricity coefficient is high.

3.The low starting torqure is designed by our mechanical engineer but also assure the high generating efficiency by improving the inner structure.With scientific design and practiced experience,the machine has stable and high efficiency.

4.  The wire package in the generator is made of copper wire which can resist 160 centigrade heat. High insulated performance, high magnetic permeability, High generating efficiency.
