Company Profile
Diesel Generators Standard Configurations
1
Standard High-level quality engine Ricardo series
2
Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H.
3
No-maintenance start battery
4
After acidification under frame, High-level strong
5
Electric start, use key start
6
Standard control panel Spray-print or LCD show panel
7
Daily fuel tank
8
High-level shock absorber system
9
Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler
10
40°C radiator as standard
11
Exhaust silencer
12
Charger motor for battery.
13
Standard export box
14
Manuals
15
Tools box
Genset model
HQ
Type
open/sound proof/weather proof
Genset output power range
10kva-300kva
Rated voltage
220/380V,230/400V,240/415V,120/240V
Frequency
50/60HZ
Power factor
0.8
Rated speed
1500/1800rpm
Output type
AC three phase/single phase
Motor
brushless
Frequency
<3%
Frequency at stable state:
<0.5%
Frequency deviation at instantaneous state
≤+10%
Frequency return time
≤3s
Voltage deviation at stable state
≤±1%
Voltage deviation at instantaneous state
≤+20%
Voltage return time
≤4s
Voltage modulation
≤0.3%
The specification of alternator:
Brand
Stamford, Leroy semor, Maraton and chinese alternator etc.
Regulator
AVR automatic voltage regulating
Excite type
pret or shunt
Connecting type
3PH star, 3PH-DELTA
Steady frequency change
0-5%
No load voltage
≥95%-105
Steady voltage
≤±1
Insulation degree
H degree
Exclosure degree
IP23
Sielnt Generator
1.Direct injection combustion chamber, high efficiency, low noise.
2.Dual intake and exhaust structure to avoid the generation of turbulence, making the intake and exhaust more smoothly.
3.Significant thickening of the ultra-quiet generator soundproof pads, have a stronger noise reduction capabilities.
Large cabinet size increases the internal space of the unit, soundproof space between the pad and the chassis was also significantly broadened, so as to achieve superior noise reduction.
4.Noise reduction standards with ISO3744 requirements, adapt to urban environmental requirements silent type casing, the noise can be reduced to 65-75db cases the following.
5.Dedicated muffler noise reduction materials, greatly inhibited the mechanical noise.
6.Damping measures to ensure efficient operation of the unit balance.
7.Scientific observation window and emergency stop buttons for easy operation and observation running.
8.Series and good ventilation to prevent heat radiation measures to ensure that the unit is always working in a suitable ambient temperature.
9.Large capacity base fuel tank, continuous operation for 8 hours.
10.Beautiful appearance, reasonable structure
11.Sealing, fully enclosed cabinet, 2mm steel plate made of rain, snow, dust, able to work in harsh environments
13.Lifting convenience, the unit in order to facilitate transport in the box set 4 lifting device
Technical data
Genset Model
WD CC30
Prime Power
24KW/15hp
Rated Voltage
400/230V
Frequency
50/60Hz
Power Factor
0.8(lagging)
The regulating rate of steady voltage
≤±0.5%
The regulating rate of instantaneous voltage
≤-15%/ +20%
The time of steady voltage
≤1.5sec
The waving rate of voltage
≤1.0%
The regulating rate of steady frequency
≤3%
The regulating rate of instantaneous frequency
≤±10%
The time of steady frequency
3sec
Dimension (L×W×H) (mm)
1200*650*900
Genset weight (kg)
340
Diesel Engine
Brand
Changchai
Mode
S1100M/S1105
Number of Cylinder
1
Rotating Speed
1500/18000RPM
Cycle
Four stroke
Type
waste gas turbine boost,direct spurting type
Bore×Stroke(mm)
100*115
Displacement(L)
1.63
Speed Governor
Electrical
Cooling System
Water-cooled
Speed Stability (%)
≤5%
Fuel Consumption at 100% Load
265 g/kw.h
Starting Method
DC24V Machinal or Electrical starting
Alternator
Brand
Shengdong
Model
STC-12/ST-12
Number of Phase
3/single
Connecting Type
Three Phase and Four Lines
Number of Bearing
1
Grading Protection
IP22
Altitude
≤1000m
Exciter Type
Brushless (AVR automatic voltage regulating)
Insulation Class
H degree
The components of the genset

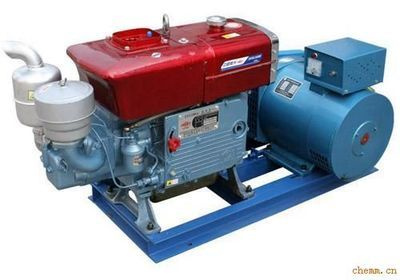

(1) Changchai Diesel Engine; (2)Shengdong Alternator; (3) Control Panel
Control Panel
The control panel the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.
Changchai series diesel generator power range from 8kw-30kw.
Type:soundproof,open,rainproof,mobile power station and container.
For better meet users' demands,the generator is selectable,we have Stamford, and other famous brands.
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers.
The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators. We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer' S require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects.
For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' Demands at different levels.
