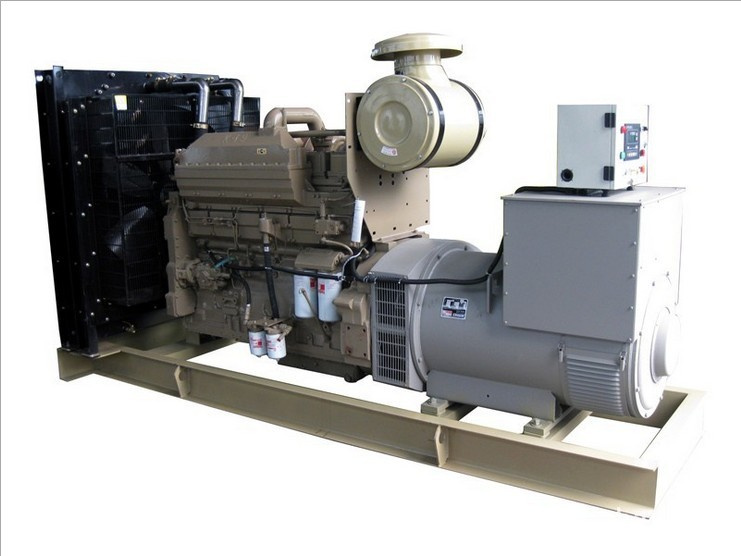

Cummins engines high-quality alternators and advanced full-automatic control systems are produced through strict tests, which together provide reliable power whether as standby, prime or continuous use.
Engine:
Water-cooled, 4 stroke, complete with air, fuel and oil filters, electric starting and charging equipment, engine protection against low water level.
Alternator:
Leroy Somer, Stamford or our Snood, brushless, self regulation, H class insulation, screen protected, drip proof rated in accordance with IEC60034, protection capability complies with the NAME1 and IP23 standards.
Standard Accessories:
1. Vibration absorber between engine, alternator and base frame
2.24V battery (maintenance free) with battery cables and rack, battery charger
3. Standard radiator mounted on skid
4. Circuit breaker
5.24V battery with battery cables and rack
6. Industrial silencer with flanged flexible connection and piping
7. Tool kit bag
Optional accessories:
1. Water pre-heater, heat exchanger
2. Alternator space heater
3. Alternator parallel droop kit connected
4. Alternator IP42 - 44 air inlet and outlet filter (10% derating)
5. Alternator 3 phase PTC thermistors
6. ATS and paralleling synchronous system
7. Soundproof canopy, silent/sound-attenuated enclosures or weatherproof canopy
8. Remote start and control, communication interface
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Engine Model
|
KTAA19-G6A
|
Engine manufacturer
|
Cummins
|
Number of Cylinders
|
6
|
Cylinder arrangement
|
Vertical in line
|
Cycle
|
4-stroke
|
Aspiration
|
Turbocharged and Air to Air Aftercooled
|
Bore x Stroke (mm x mm)
|
159 x 159
|
Displacement (L)
|
18.9
|
Compression ratio
|
13.0 : 1
|
Prime Power/Speed (KW / rpm)
|
560 / 1500
|
Standby Power/Speed (KW / rpm)
|
610 / 1500
|
Speed Governor
|
Electrical
|
Cooling System
|
Forced Water Cooling Cycle, 40° C Radiator as Standard, 50° C Is Optional
|
Steady Speed Droop (%)
|
≤ 1%
|
Total librication system capacity (L)
|
50
|
Coolant capacity (engine only) (L)
|
30
|
Fuel Consumption at 100% Load (L/hr)
|
122.1 (at 1500RMP)
|
Starter Motor
|
DC24V
|
Alternator
|
AC24V
|
Alternator Specifications
Brand
|
Stamford
|
Model
|
HCI544FS |
Prime Power
|
500KW / 625KVA
|
Rated Current (A)
|
949.6
|
Rated Voltage
|
220V / 380V
|
Frequency
|
50HZ @ 1500rpm
|
Power Factor(COS)
|
0.8
|
Phase
|
3-phase 4-wire
|
Excitation
|
Brushless, Self-excited, Automatic voltage regulation.
Insulation Class: H . Protection Grade : IP23.
|
Voltage Regulation
|
AVR
|
The regulating rate of steady voltage
|
≤ 1%
|
The regulating rate of instantaneous voltage:
|
-15%~ +20%
|
The time of steady voltage:
|
≤ 1.5sec
|
The waving rate of voltage:
|
≤ 1.0%
|
The regulating rate of steady frequency:
|
≤ 3%
|
The regulating rate of instantaneous frequency:
|
≤ ± 10%
|
The time of steady frequency:
|
3sec
|
The waving rate of frequency:
|
≤ 1%
|
