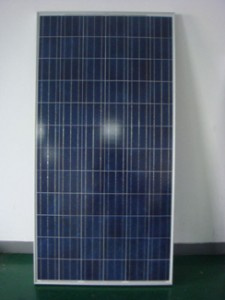

200Watt Solar Panel Features
1) High Efficiency
2) 24V DC standard output
3) CE, TUV junction box
4) Lifetime: 25 years
5) Warranty: 2 years
6) 90% power 10 years
7) 80% power 20 years
|
Model |
SNM-PB200W-24 |
|
Nominal power (Pm) |
200 Watt |
|
Power allowance |
± 3% |
|
Optimized working voltage (Vm) |
26.2V |
|
Optimized working current (Im) |
7.63A |
|
Open circuit voltage (Voc) |
33.4V |
|
Short circuit current (Isc) |
8.12A |
|
Module efficiency |
13.5% |
|
Withstanding voltage |
DC1000V |
|
Dimension of module (L) |
1482× 992× 50 |
|
Net weight (Kg) |
19 |
|
Packing ( pcsMcarton) |
2 |
|
Dimension of package (L) |
1532× 920× 150 |
|
Volume (m3) |
0.21 |
|
Gross weight ( Kg/carton) |
40 |
|
Dimension of pallet |
1562× 1080× 1950 |
|
Quantity in a 40’ container |
20carton/pallet× 13 pallet =260carton (520pcs) |
|
Time returnable & replaceable |
2year |
|
Power attenuation |
10year≤ 10%20year≤ 20% |
