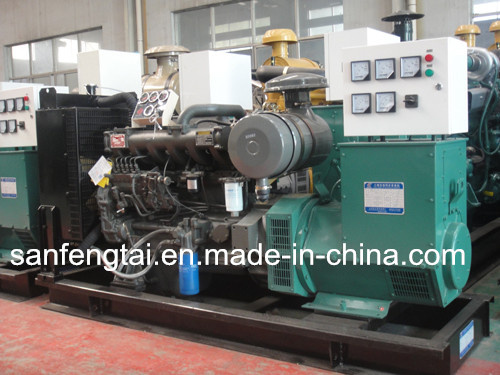

200KW Weichai generator
Weichai generator consist of Weichai diesel generator and engine. Small volume, strong power, safe and reliable. It's can provide perfect after-sales service and sufficient spare parts. Power is ranged from 30KW to 300KW. Stable in quality with reasonable price.
Specifications:
. Cheap price&reliable quality
. CE&ISO9001-2000
. Low Fuel-consumption
. Outstanding performance
. Good after-sales service
Engine:
I. 4, 6, 8, 12 Stroke
II. Water cooled or air cooled
III. Electric start or manual start
IV. Direct combustion chamber
V. Integrated high intensity cylinder
Alternator:
I. Excitation: Harmonic excitation or phase compound or brushless self excited
II. Phase: 3 phase or single phase
III. Connection: Y connection or other type
IV. Rated speed: 1500/1800RPM, IP21/IP23
V. Regular: Automatic, deviation rate: +-5%
VI. Power factor: 0.8 or 1.0
Supply Scope:
I. Brand-new engine, with start motor.
II. Brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
III. Heavy duty steel channel base frame.
IV. Heavy duty industrial type silencer with flexible bellow.
V. Vibration damping supports between Engine/Alternator and base frame.
VI. Radiator with safety guard.
VII. Automatic strat control panel, Smartgen brand HGM6110 model as standard supply.
VIII. High capacity lead acid battery c/w battery cables.
IX. 3-pole output circuit breaker.
Soundproof/Silent Box:
I. Excellent ventilation
II. Oil tank mounted on base frame for 12 Hours working
III. Highly Corrosion Resistant construction
IV. Excellent Access for Maintenance
V. Security and Safety
VI. 1m<80DBA / 7m<70DBA
Control Panel:
I. Automatic control panel (AMF), LCD display
II. Four protection systems
III. Emergency stop
Optional:
I. Trailer type
II. Soundproof / water proof
III. ATS (automatic transfer switch)
IV. Parallel system
V. Remote system
Commercial Conditions:
. Port of loading: Qingdao port
. Port of destination: To be informed
. Delivery time: 15-40 days after down payment
. Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory
. Insurance: 110% of total amount
. Failure Remedy: Free spare parts due to failures cause by the quality
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Our service quality assurance:
I. Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
II. Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
III. After sale maintenance service: We create files for end user and provide them follow-up service.
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Cummins power generator, and soundproof generator, movable generator etc, power range from 10kVA to 2000kVA.
|
Genset Model |
6126ZLD-200 |
|
SET |
Genset model |
6126ZLD-200 |
|
Output power |
225KW |
|
Power factor |
0.8(lagging) |
|
Output voltage |
400V/230V |
|
Output current |
360A |
|
Rrted Freguency |
50hz |
|
Rated Rotating speed |
1500rpm |
|
The grade of fuel |
(standard)0#light diesel (normal) |
|
Dimension |
2700*900*1700(L*W*H mm) |
|
Genset weight |
2500kg |
|
Voltage Regulation steady state(%) |
≤±1 |
|
Voltage fluctuation rate(%) |
≤±0.5 |
|
Voltage regulation transient state(%) |
+20~-15 |
|
Voltage stability time(s) |
≤1 |
|
Reguency regulation steady state(%) |
≤±1 |
|
Requency fluctuation rate(%) |
≤±0.5 |
|
Requency regulation transient state (%) |
+10~-7 |
|
Reguency stability time(s) |
≤3 |
|
Fuel consumption at 100% load |
≤218g/kw*h |
|
Nose(LP7m) |
95dB(A) |
|
ENGINE |
Place of origin/brand |
LiZhiYuan |
|
Diesel engine model |
R6105ZD |
|
Number of cylinders |
6/L model |
|
Bore*stroke |
126*130mm |
|
Compression ratio |
17:1 |
|
Starting method |
Electrical starting |
|
Cooling system |
Compulsory water cooling |
|
Oil way |
Direct injection |
|
Speed governors method |
Mechanical speed governors |
|
Intake way |
Turbocharged Intercooling |
|
Overload capacity |
110% |
|
Rotating speed |
1500rpm |
|
ALTERNATOR |
Place of origin/brand |
JiangYue |
|
Alternator model |
Phase Compound Excitation Three-Phase A.C. Synchronous Generator |
|
Rated power |
200Kw |
|
Rated voltage |
400V/230V |
|
Insulation class |
H class |
|
Protection class |
IP22 |
|
Connecting type |
3phase4wires Y type |
|
Accommodation type |
AVR |
|
Output frequency |
50hz |
|
Output factor |
0.8(lagging) |
Qingdao Sanfengtai International Trade Co., Ltd. is a professional manufacturer and supplier of high quality diesel generator and accessories. The company has advanced production lines, sophisticated detection equipment, a complete quality management system, the number of highly qualified engineers and technicians. The business invloves all over the world.
Our factory is located in Dongying, Shandong province which has built a domestic advanced production line with functions of equipment, trial run and paint coating, and a modern laboratory of whole machine and accessories. The company always insists on the following quality policies and targets: Pushing the enterprise operating in the quality system which can be recognized by customes.
Keeping on the objectives of 'quality first, client supreme, all services for clients', Sanfengtai would like to create good future together with you.
