Vertical Wind Generator FD1.65-1000

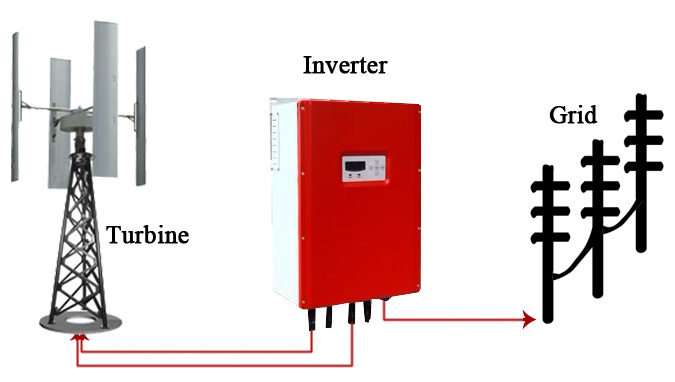

The electrical power produced by the FD1.65-1000 charges 48 volt or 96 volt batteries. Alternating current(AC) electrical appliances can be supplied by connecting a 220 volt or 110 volt inverter to the batteries.
Energy efficient, reliable, roof mounted and affordable
Have very little vibration
Will catch wind from any direction
Produce little noise
Are a high performance sustainable renewable energy source
Specifications
OVERALL
Cut in wind speed 5 m/sec
Cut out wind speed 14m/sec
Rated wind speed 12 m/sec
Working wind speed 5 ~ 14 m/sec
Survival wind speed 60 m/sec
Rated rotor speed 300 rpm
Max rotor speed 350 rpm
Over speed protection electromagnetic brake
Height of tower recommended 3 ~ 6 meter high with pipe inner diameter of 98mm
TURBINE
Rotor height 1.65 m
Rotor diameter 1.6 m
Number of blades 4 blades, of aluminum alloy material
Turbine Weight 32 kg
GENERATOR
Type 3 phase PMG
Rated power 1000W
Max power 1200W
Nominal voltage 120V/240V
Kilowatt Hours Per Month 162 kWh/month /average 5.3 m/s
Over speed protection electromagnetic brake
