Vertical Wind Generator WFD2.7-2000
We introduces the newest vertical axis wind generator:
This wind generator adapts magnetic levitation alternator. It means negligible friction loss, Little wear, and higher reliability.
The advantages are:
Very small rotor diameter, more safe
Less vibration
Low friction magnetic levitation alternator gives a smooth and silent output
The electrical power produced by the WFD2.7-2000 charges 120 volt or 240 volt batteries.
Alternating current(AC) electrical appliances can be supplied by connecting a 220 volt or 110Volt inverter to the batteries.

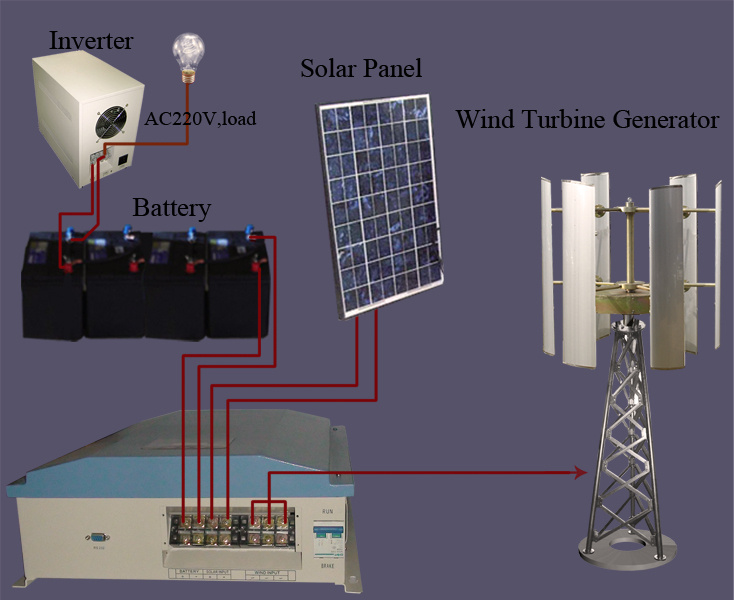

Wiring
1) Off Grid Connecting
2) On Grid Connecting
When used in conjunction with a suitable Grid Tie inverter FD2.6-2000 can also be connected to the power grid.
Specifications:
|
OVERALL |
|
Cut in wind speed |
5 m/sec |
|
Cut out wind speed |
14m/sec |
|
Rated wind speed |
12 m/sec |
|
Survival wind speed |
60 m/sec |
|
Rated rotor speed |
90 rpm |
|
Max rotor speed |
110 rpm |
|
Over speed protection |
electromagnetic brake |
|
Height of tower recommended |
3 ~ 6 meter high with pipe diameter of 120mm |
|
TURBINE |
|
Rotor height |
2.7 m |
|
Rotor diameter |
2.6 m |
|
Number of blades |
6 blades, of aluminum alloy material |
|
Turbine Weight |
80 kg |
|
GENERATOR |
|
Type |
3 phase PMG |
|
Rated power |
2000W |
|
Max power |
2500W |
|
Nominal voltage |
240V or 120V |
|
Kilowatt Hours Per Month |
305 kWh/month /average 5.5 m/s |
Suzhou Yueniao Machinery & Electronics Imp & Exp Co., Ltd. is one of the pioneer renewable energy business and has been in this field since 2002. We are dedicated exclusively to the business of small wind generator, mini hydroelectric generator and solar energy.
As a manufacturer with advanced technology, we are making in our own workshop the wind turbine from 300W to 20kw with CE certificates. Beside that we are dealing with business of mini hydroelectric generator from 200W up to 60KW and solar panel from 20W to 280W.
We do not claim any of its products to be the best, but we are proud to hear the owners of our products praise them. And that is what makes all the time and effort we spend on our products worthwhile.
Thank you for your support!
