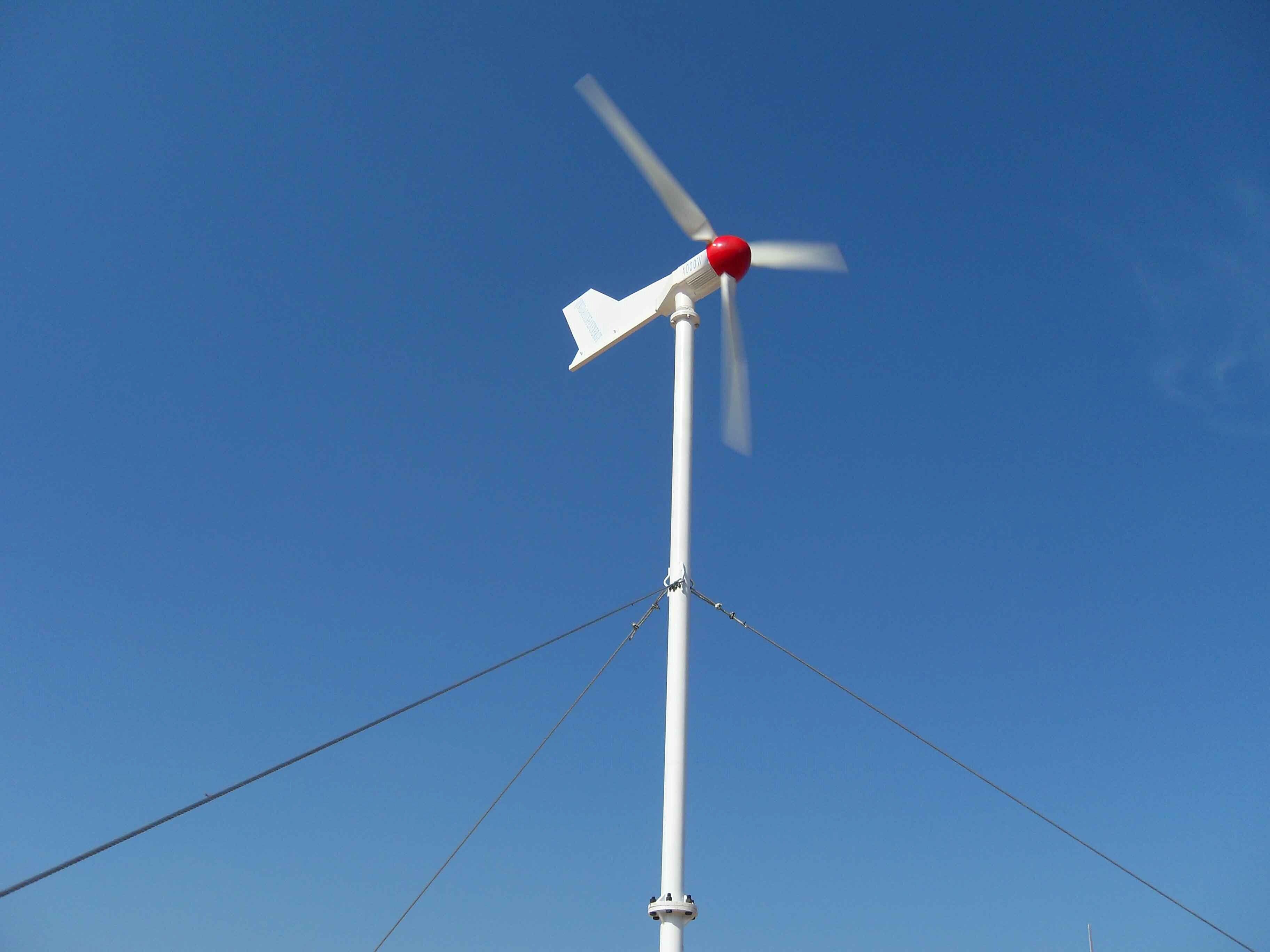

1kw Horizonal Axis Wind Turbine System
| Price: |
US $ 2000-2200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Main technical data as follows:
1. Machine Type: horizontal-axis wind turbine
2. blade form: propeller
3. blade number: 3 pcs
4. balde material: glass fibre reinforced plastic
5. type of generator:permanent-magnet 3 phase AC
6. type of tower: guy wire or free standing
Power: 1000W
Blade diameter (m):3.2
Rated Rotated speed(r/min): 400
Rated speed (m/s): 8
Rated power: 1KW
Max power: 1.5KW
Output voltage (v): 48
Start up wind speed (m/s): 3
Work speed (m/s):3-25
Security wind speed(m/s):50
High of tower (m): 6
Top quality except tower: 95kg
Tower Steel tube model (mm):φ76
Capacity and quantity of battery: 12V100AH4 pcs
speed regulation: leaning tail + electric brake
Can supply power for: Refrigerators, Water pumps (350), Color TV sets, Washing machines, Lighting, Electric fans, Charge| Rated Power | 1kw |
| Blades Number | 3 pcs |
| Rotor Diameter | 3.2m |
| Rated Rotated Speed | 430r/m |
| Rated Wind Speed | 8m/s |
| Output Voltage | 48v |
| Start Up Wind Speed | 2.2m/s |
| Operating Wind Speed | 3-25m/s |
| Security Wind Speed | 40m/s |

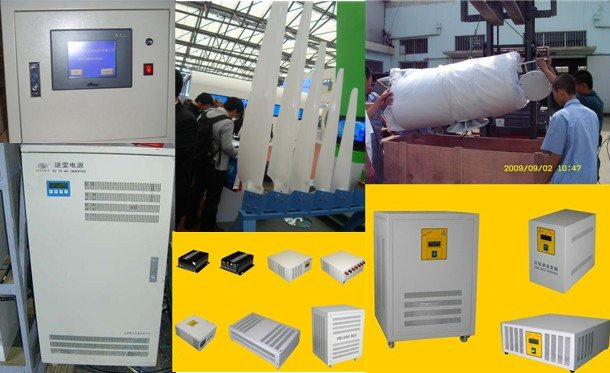

| Output Controller System | controller and inverter |
| Battery | 12V200AH 4pcs |
| Prod Model: |
HAWT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Axis Type: |
Horizontal |
| Blades: |
3 PCS |
| Rotating Shaft: |
Horizontal |
| Stress Way Of Blade: |
Resistance |
| Number Of Blade: |
Three Blade |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
