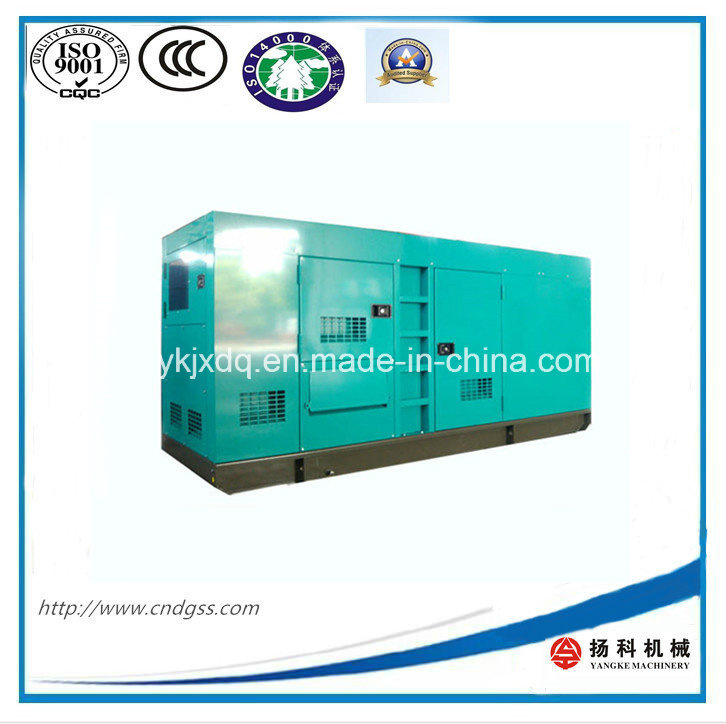

1)Perkins engine+Brushless alternator
2)68db@7m, small size
3)Low fuel consumption
MODEL |
QSP-200 |
PRIME POWER (KVA/KW) |
200/160 |
STANDBY POWER(KVA/KW) |
220/176 |
Rated voltage(V) |
400/230 |
Rated speed(rpm) |
1500 |
Rated frequency(Hz) |
50 |
Power factor |
0.8 |
Ambient temperature(°C) |
40 |
Altitude(m) |
1000 |
Connection type |
3 phase 4 wires |
ENGINE MANUFACTURER |
powered by PERKINS engine |
Model |
1306C-E87TAG3 |
Rated Power(kW) |
199 |
No. of cylinders & configuration |
6 in-Line |
Method of operation |
4-stroke |
Speed regulation |
Electric governor |
Starting system |
DC 24V Electronic start |
Cooling method |
Closed-circuit cooling system |
Total displacement(L) |
8.7 |
Compression ratio |
16.9:1 |
Bore×Stroke(mm) |
116.6×135.9 |
100% Load fuel consumption(L/h) |
≤45.2 |
ALTERNATOR MANUFACTURER |
STAMFORD |
Number of Phase |
3 |
Connection Type |
3Phase and 4Wires |
Number of Bearing |
1 |
Power Factor |
0.8 |
Protection Grade |
IP23 |
Terminal |
12 |
Winding/ Pitch |
100% Copper 2/3 Pitch |
Cooling Fan |
Cast alloy aluminum |
Exciter Type |
Brushless, Self-Exciting |
Insulation Class, Temperature Rise |
H/H |
Telephone Influence Factor( TIF) |
TIF <50 / THF<2% |
Total Harmonic TGH/THC |
<1.5% at no load / <5% at load |
Voltage Regulation, Steady State |
≤±1% |
Sustained Short-Circuit Current |
300%(3 in):10s |
CONTROL SYSTEM |
DSE SERIES |
Packaging & Delivery
| Packaging Detail: | generator standard exporting package |
| Delivery Detail: | within 5-25working days after the deposit |
Company Information
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
FAQ:
(1) Your company is factory or Trade Company?
Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2) Your diesel generator power range?
Answer: Now we mainly produce QS series 8-3000kva brushless alternators,
(3) Which brand Electrical Generator you produce?
Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America
