Main technical data as follows:

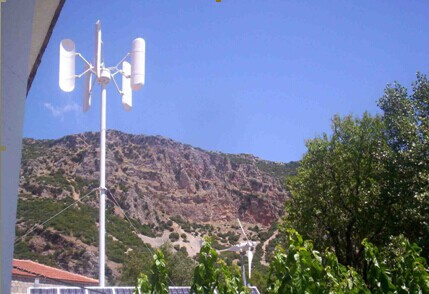

1. Machine Type: Vertical-axis wind turbine
2. Blade form: C-shaped
3. Blade number:5 pcs
4. Blade material: glass fiber reinforced plastic
5. Type of generator: permanent-magnet direct drive 3 phase AC
6. Type of tower: guy wire or free standing
Power: 15KW
Blade diameter (m): 9.0
Rated Rotated speed(r/min): 100
Rated speed (m/s): 11
Rated power: 15KW
Max power: 20KW
Output voltage (v): 380
Start up wind speed (m/s): 2
Work speed (m/s): 3-25
Security wind speed(m/s):50
speed regulation: charger and inverter
Capacity and quantity of battery: 12V200AH30 pcs
Can supply power for: Small villages, Air conditioners, Refrigerators, Water pumps, Cookers, Color television sets, Washing machines, Lighting, Electric fans, and Charge
Life span:20-25 years;
Rated power | 15kw |
Max power | 20kw |
Blade diameter | 9.0m |
Blade material | Fiber glass reinforced |
Blade quantity | 3 pcs |
Rated rotor speed | 200rpm |
Rated wind speed | 10m/s |
Start up wind speed | 3m/s |
Work wind speed | 3-25m/s |
Security wind speed | 50m/s |
Generator style | Three phase and permanent magnet |
Top quality except tower | 680kg |
Speed regulation method | Yawing and electromagnetic resistance |
Stop method | Manual brake |
Output controller system | controller and inverter(pure sine wave) |
Battery voltage | 380V |
Suggested battery capacity | 12V 200AH |
Suggested battery quantity | 30 pcs |
AC output voltage and frequency | according to voltage and frequency of customers' requirements |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
