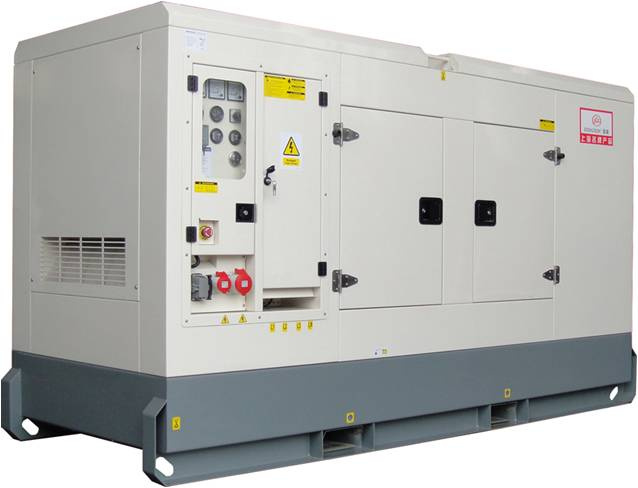

Cummins Series Power Generator/Silent Generator/Soundproof Generator/Soundproof Diesel Generator/ ower Generator/Gensets Power From 20kVA up to 1500kVA, with compacted structure and best configuration.
Specifications
1)diesel generator
2)8-24 hours base fuel tank
3)low fuel consumption
4)Highly Corrosion Resistant Construction
5)low noise
Engine Model:
A)Multi-cylinder in-line engine, 4-stroke, direct injection
B)Electronic governors
C)PT fuel injection pump
D)Electric motor starting system
E)Low discharge and below furl consumption
F)installed conveniently and maintained easily
Alternator: Stamford or copy stamford
A)Brushless, self-excited, 4-pole, single bearing
B)AVR self-regulated, voltage regulation rate<1
C)IP21 protection grade
D)Class Hinsulation
E)Moistureproof, sand-proof, dustproof, salt-proof and vibration-proof
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6.1m<80DBA / 7m<70DBA
Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
Commercial Conditions
1. Port of loading: Qingdao port
2. Port of destination: To be informed
3. Delivery time: 15-40 days after down payment
4. Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory
5. Insurance: 110% of total amount
6. Failure Remedy: Free spare parts due to failures cause by the quality
Warranty
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Similar products:
Weichai diesel generator, Doosan generator set, Volvo diesel generator set, Deutz generator, and soundproof generator, movable generator etc, power range from 10kVA to 2000kVA.
1.Main technical data of gensets |
|
1.1 |
Model |
GFDK-XZ150 |
|
1.2 |
Prime power |
150KW/188KVA |
|
1.3 |
Prime voltage |
230/400V |
|
1.4 |
Speed |
1500 rpm |
|
1.5 |
Weight |
1590kg |
|
1.6 |
Overall dimension |
2400×1080×1600mm (just for reference) |
2.Main technical data of engine |
Cummins engine, 4 stroke. DC start. |
|
2.1 |
Brand |
DCEC CUMMINS |
|
2.2 |
Model |
6CTA8.3-G2 |
|
2.3 |
Prime power |
163KW/204KVA |
|
2.4 |
Governor type |
Electronic |
|
2.5 |
Configuration |
4 cycle , 6 cylinder in line |
|
2.6 |
Air Intake System |
Tubocharged/Aftercooled |
|
2.7 |
Bore/Stroke |
114×135 mm |
|
2.8 |
Displacement |
8.3 L |
|
2.9 |
Starting method |
Electric |
|
2.10 |
Compression ratio |
17.0:1 |
|
2.11 |
Fuel consumption |
205g/kW·h |
3. Main technical data of alternator |
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. |
|
3.1 |
Brand |
JIANGYUE |
|
3.2 |
Model |
W274G |
|
3.3 |
Prime power |
160KW/200KVA |
|
3.4 |
Configuration |
Brushless , self-exciting |
|
3.5 |
Prime voltage |
230V/400V |
|
3.6 |
Frequency |
50 HZ |
|
3.7 |
Power factor |
0.8(lagging) |
|
3.8 |
Phase/wire |
3 phase 4 wires |
|
3.9 |
Isolation |
H |
