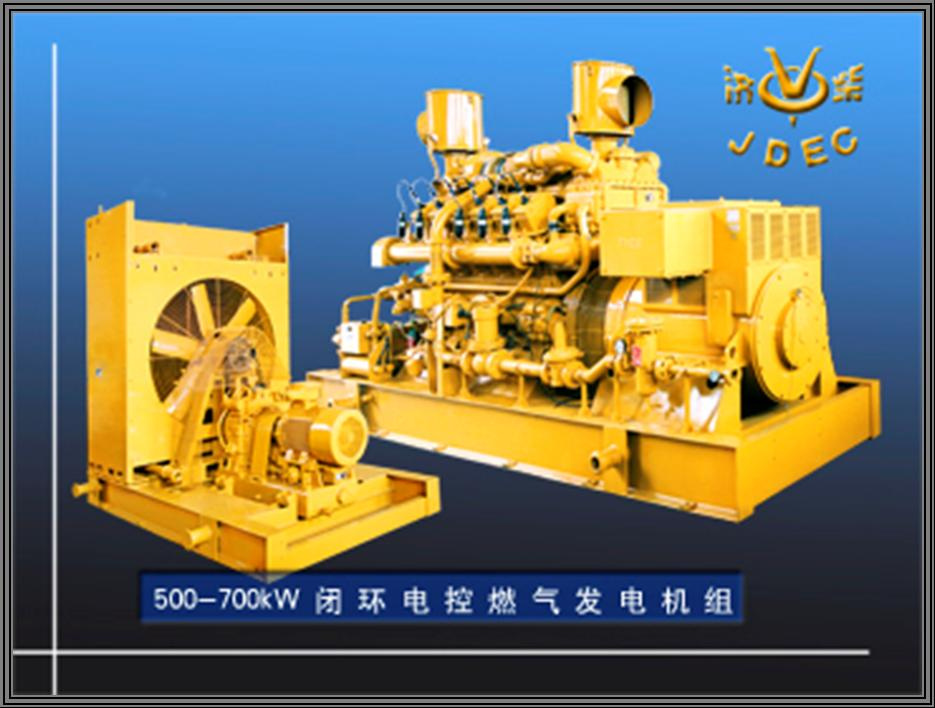

150kw-600kw biogas generator
1. Spark ignition
2. Pre-combustion chamber
3. Inter cooling
4. Open type
1. Technical Parameters of Biogas Engine:
Model 4190ZL 12V190ZLDZ-2 12V190Z-2 12V190ZLZ
Code 114LZ 1012CZ 1112CZ 1812Z
Type 4 stroke, sparkle ignition, water-cooled and non-turbocharged 4 stroke, spark ignition, water-cooled, turbocharged, inter cooling, pre-combustion chamber 4 stroke, spark ignition, water-cooled and non-turbocharged, pre-combustion chamber 4 stroke, spark ignition, water-cooled, turbocharged, inter cooling
Mixing type External-mixed Mechanical inter-mixed
Arrangement of cylinders In-line V shape, 60° Angle
Number of cylinders 4 12
Diameter of cylinders 190 mm
Stroke 210 mm
Rated rev 1500 r/min 1000 r/min 1500 r/min
Idle speed 700 r/min
Rated power 190 kW 500 kW 450 kW 660 kW
Exhaust temperature ≤ 650° C(before entering turbine)
Heat consumption ≤ 11340 kJ/kw@h
Oil consumption ≤ 1.6g/kw. H
Start mode Pneumatic/electric starting 24DC starting
Overhaul time ≥ 18000h
2. Technical Specs and Performances of Biogas Generating Set:
Generating set model 150GF-NK 450GF1-NK 400GF1-NK 600GF-NK
Engine model 4190Z1 12V190ZLDZ-2 12V190Z-2 12V190ZLZ
Excitation Brushless phase compound excitation(three-phase four-wire)automatic voltage regulation, F class insulation
Rated power 150 kW 450 kW 400 kW 600 kW
Rated voltage 400V
Rated rev 1500 r/min 1000 r/min 1500 r/min
Rated current 270A 819 A 728 A 1082 A
Power factor 0.8(lagging)
Starting mode 24DC starting
Cooling water system Open type with heat exchanger
Overhaul time ≥ 18000h
Jinan Guohua Green Power Equipment Co., Ltd. was established in 2010 and is a professional manufacturer engaged in the research, development, production, sale and service of gas generators and diesel generators with different power ranges. We are located in the beautiful city of spring - Jinan, Shandong Province, China, and have convenient transportation access.
Taking combustible gas as the fuel for engine can solve the electricity and power problems in the area with rich combustible gas, and also reduce the pollution of directly venting combustible gas into atmosphere. To meet the market requirement, we develop several series of gas engines and generating sets based on self experience, professional qualification as well as absorbing world advanced technology and sophisticated experience. The gas engines include series 190 with 4 cylinders, 6 cylinders, 8 cylinders and 12 cylinders, and series 135 with 4 cylinders, 6 cylinders and 12 cylinders. The engines can be divided into outer mixing, mechanical inner mixing, electronic inner mixing, electronic lean-burnt, etc. Engine power range is from 8kw to 1500kw. The fuel gas includes natural gas, coke oven gas, biogas, coal mine gas, refinery gas and so on, which can meet the utilizing requirements of different areas and different gas compositions. Now our products are widely used as generating sets, compressor sets and other power take-off sets in the areas with rich fuel gas, for example oil fields.
Dedicated to strict quality control and thoughtful customer services, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment, including ABB robot assembly lines.
Our main products are natural gas generators, biogas generators, gas generators and diesel generators, with such brands as JiChai, Volvo and Cummins. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Western Europe, South America, Southeast Asia, Africa, etc. We also welcome OEM and ODM orders.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Jinan Guohua Green Power Equipment Co., Ltd a subsidiary of JDEC(Jinan Diesel Engine Co., Ltd. ). Jinan Diesel Engine Co., Ltd(JDEC) is the only internal-combustion engine manufacturing enterprise belonging to China National Petroleum Corporation(CNPC). It is also the main manufacture of off-highway medium&large power engine in China. At present, it covers area 600, 000square meter and has more than 2000 employees. The total asset is more than 800 million. In 1995, JDEC got the CCS(China Classification Society) ISO 9001 Quality System Approval. In 1996, it was listed in Shenzhen Stock Exchange as Shiyoujichai.
