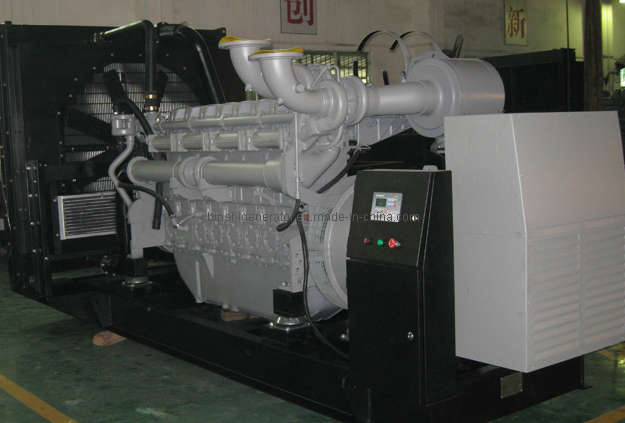

1500kVA Perkins Diesel Generator
4012-46TWG3A Perkins Diesel Generator (50Hz)
Genset model: BPX1500
Diesel generator is one of the most competitive products for Binshi.
Binshi is one of Perkins OEM manufacturers in China.
Perkins engine is one of the most popular power all over the world.
Characteristics of Perkins Engine
Economic Power
1) Mechanically operated unit fuel injectors with electronic control combined with carefully matched turbo-charging give excellent fuel atomization and combustion with optimum economy.
2) Low emissions result from electronic control of fuel injected.
Reliable Power
1) Developed and tested using the latest engineering techniques and finite element analysis for high reliability, low oil usage and low wear rates.
2) High compression ratios also ensure clean rapid starting in all conditions.
3) Perkins global product support is designed to enhance the customer experience of owning a Perkins powered machine. We deliver this through the quality of our distribution network, extensive global coverage and a range of Perkins supported OEM partnership options. So whether you are an end-user or an equipment manufacturer our engine expertise is essential to your success.
Compact, Clean and Efficient Power
1) Exceptional power to weight ratio and compact size give optimum power density with easier installation and cost effective transportation.
2) Designed to provide excellent service access for ease of maintenance.
Product Support
1) Perkins actively pursues product support excellence by ensuring our distribution network invest in their territory - strengthening relationships and providing more value to you, our customer.
2) Through an experienced global network of distributors and dealers, fully trained engine experts deliver total service support around the clock, 365 days a year. They have a comprehensive suite of web based tools at their fingertips covering technical information, parts identification and ordering systems, all dedicated to maximizing the productivity of your engine.
3) Throughout the entire life of a Perkins engine, we provide access to genuine OE specification parts and service. We give 100% reassurance that you receive the very best in terms of quality for lowest possible cost, wherever your Perkins powered machine is operating in the world.
AC Alternator
(1) Brand: Leroy-somer, Marathon, Stamford and Engga(optional)
(2) Excitation method: Brushless self-excitation
(3) Insulation grade: H
(4) Protection grade: IP21-IP23
(5) Electromagnetic interference: THF<2%, TIF<50
|
Model |
BPX1500 |
|
Diesel Generator Specifications |
|
Rated Power (kW/kVA) |
1080 / 1620 |
|
Standby Power (kW/kVA) |
1200 / 1500 |
|
Rated Voltage (V) |
230 / 400 |
|
Frequency (Hz) |
50 |
|
Rated Current (A) |
1848 |
|
Steady State Voltage Adjustment |
≤±0.5% |
|
Transient State Voltage Adjustment |
≤±20%~-15% |
|
Voltage Recovery Time (S) |
≤2 |
|
Voltage Fluctuation Ratio |
≤0.5% |
|
Voltage Wave Distortion Ratio |
≤5% |
|
Steady State Frequency Adjustment |
≤±5%(0-5 adjustable) |
|
Transient State Frequency Adjustment |
≤+10%~-7% |
|
Frequency Recovery Time (S) |
≤3 |
|
Frequency Fluctuation Ratio |
≤0.5% |
|
Starting Mode |
DC 24V |
|
Noise Level dB(A) @ 1 Meter |
≤111 |
|
Overall Dimension(mm) (L*W*H) |
5500*2200* 2500 |
|
Weight (kg) |
12000 |
|
Standard Atmosphere |
GB1105, ISO3046 |
|
Altitude (m) |
≤1000 |
|
Ambient Temperature(ºC) |
≤40 |
|
Relative Humidity (%) |
≤95 |
|
Diesel Engine Specifications |
|
Engine Model |
U.K Perkins 4012-46TWG3A |
|
Type |
4-cycle,V 60ºC, 12-cylinder |
|
Cooling Mode |
Radiator fan cooling for closed-type cooling mode |
|
Bore * Stoke(mm) |
160*190 |
|
Displacement (L) |
45.8 |
|
Compression Ratio |
13:1 |
|
Engine Power |
1314kW @1,500 rpm |
|
Fuel |
Diesel |
|
Oil Consumption (L/h) |
281 |
|
Coolant Capacity (L) |
196 |
|
Exhaust Gas Flow (m 3 /min) |
240 |
|
Exhaust Gas Temperature (ºC) |
474 |
|
Lubricating oil Capacity (L) |
177 |
|
Governor Method |
Electronic |
|
Alternator Specifications |
|
Alternator Model |
Marathon MX-1030-4 |
|
Rated Power (kW/kVA) |
1030/ 1287.5 |
|
Excitation Mode |
Brushless |
|
Wiring Mode |
3-Phase 4-Wire |
|
Power Factor |
0.8 |
|
Insulation Class |
H |
|
Stator Winding |
2/3 |
|
Over-speed |
1875 rpm |
|
Full Load Current |
1858 amps |
|
TIF |
<50 |
|
THF |
<2% |
|
Control System |
|
Brand |
DEEPSEA |
|
Model |
DSE7320 |
|
Capacity |
Over-speed, high water temperature, low oil pressure, start failure, hand start control, distal start control and ect. |
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.
BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.
In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.
BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.
BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
