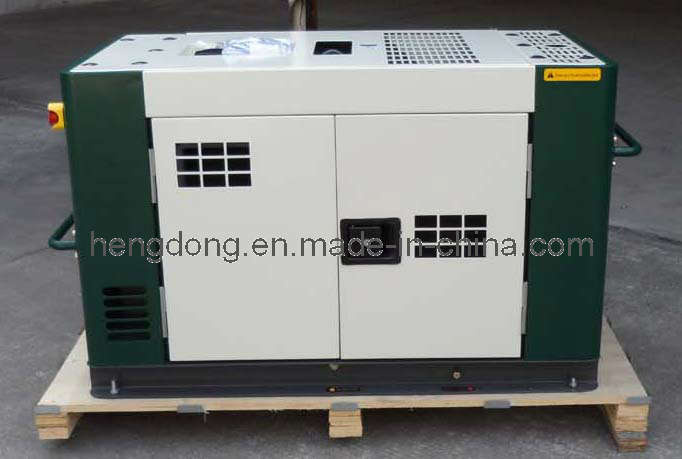

Super Silent Diesel Generator Set HD12SW, with CE, GS, EPA certificate. with Yanmar's engine, excellent performance.
Features and benefits:
A new AVR(Automatic Voltage Regulator)delivers non-fluctuating power.
Powerful EV80 diesel engine.
Low oil pressure alert system shuts down the engine automatically.
|
Generator-Set |
Generator Set Model |
HD12SW |
|
Frequency (Hz) |
50 |
60 |
|
Rate output Power(KVA) |
10 |
12 |
|
Max output Power (KVA) |
12 |
14 |
|
Engine Power(KVA) |
16.8 |
|
Rated Voltage (V) |
230/400 |
120/240 |
|
Power Factors (COSΦ ) |
0.8 |
1 |
|
N. W (kg) |
310 |
|
G. W(kg) |
345 |
|
Fuel tank capacity on base |
25L |
|
Continuous operating hour |
8 |
|
Silent type size (cm) |
1200x650x760 |
|
Silent type Pack size (cm) |
1400x700x950 |
|
Engine |
Model |
EV80 |
|
Engine Configuration |
2-Cylinder, 4-Strokes |
|
Bore× Stroke(mm) |
80x79 |
|
Engine Filter System |
Naturally Intake |
|
Compress ratio |
23: 01 |
|
Fuel consumption(g/kw-h) |
275 |
|
Oil Model And Capacity |
SAE10W30(2.5L) |
|
Engine cooling Mode |
Closed water-cooling |
|
Speed Control System |
Electricity |
|
Rated speed (r/min) |
3000 |
3600 |
|
Fuel System |
0# _ 10# |
|
Displacement(L) |
0.794 |
|
Start Mode |
DC12VElectric starting |
|
Operating noise level(7m) |
65-70 Db(A) |
|
Alternator |
model |
Self-excited (AVR) |
|
Voltage adjustment range |
> = +/- 5% |
|
Excitation way |
Brush |
|
Insulation class phase |
F- three phase& 4 in-line |
