Home Generator Products 12kw Gasoline Generator with Honda Engine (HG12000)

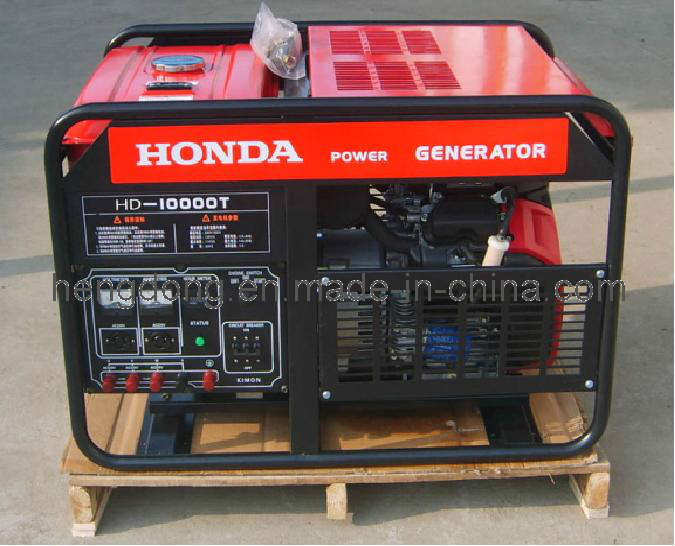

12kw Gasoline Generator with Honda Engine (HG12000)

12kw Gasoline Generator with Honda Engine (HG12000)
Price: Negotiable
Trade Terms: FOB
Min Order: 20/Set
Pay Type: T/T
12KW Gasoline Generator with Honda engine. Imported from Japan. Excellent Quality
Generator MODEL HG12000
Type Brush single-phase or three phase
Voltage Regulate AVR
Frequency 50/60Hz
Rated Ac Output 10KW
Max Ac Output 12KW
Rated Ac Voltage 120 or 240V-220V or 380V
Power Factor COSΦ =1.0
Gasoline  Engine Model Honda GX630
Type  Engine 90L-Type, Double, bore, Air-cooled, 4-Stroke
Bore× Stroke 2V-78*71
Air cleaner Semi-dry double silent type
Cooled way Air-cooled
Displacement 680ml
Compression ratio 8.5: 1
Max torque 4.5kg-m/2500rpm
Ignition system Non-contact transistorized ignition(T. C. I)
Spark plug gap 0.7mm
lubricating oil SF or Higher Grade
lubricating oil capacity 1.4L
Lubrication system Pressure Splash
Fuel consumption 230g/KW-hour
Power output 14.7/3600(KW/ rpm)
Generator-Set Fuel Unleaded gasoline
Starting system Electric start
Noise level 76-80(7m)dB(A)
Oil alarm No lube oil Auto stop safekeeping
Fuel capacity 30L
Front panel control system  Two AC Socket-Ac-circuit one socket
Dc-Output DC12V/8.3A customer optional
BATTERY 6-FM-18, 12V32Ah
Dimension L× W× H 930× 720× 690mm
Gross/ Net weight 165/160kg
Unit(20FT) `60SET
Prod Model: HG12000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated AC Output: 10kw
Max AC Output: 12kw
Rated AC Voltage: 120V or 240V-220V or 380V
Output Type: AC Single Phase
Established in July 2007, located in Weiyang district of Yangzhou, a city subordinate to Jiangsu province, Yangzhou Hengdong Mechanical & Electrical Co., Ltd is conveniently suited near freeway with ascendant investment environment. It arranges a settlement of 50 employees, among which there are 30 boasting academic certificate at or above the junior college level or obtaining junior superior title. Most of 8 technicians have served as Chief Engineer or Assistant Chief Engineer in the well-known generator manufacturing enterprises.

The company owns international advanced product research and development center, assembly line, machine performance test line, and generator component test table, which are all provided with computer-control system. Its leading product, HD power brand generators, can be widely applied in the home power solution, cars industry, army connection system, network system and telecom area.

Until now, with the certification of ISO9001, EPA, CARB and CE, the company has provided its products to a lot of different market which includes North & South America, Europe, Africa, Middle-east and Chinese local market.

Hengdong is not only an OEM factory, but also the strong backing of its client who researches and develops new suitable products every year for the ever-changing world wide market. We will be always keep going on improving the product value and creating long time partnership with all our world wide strategic partners.
