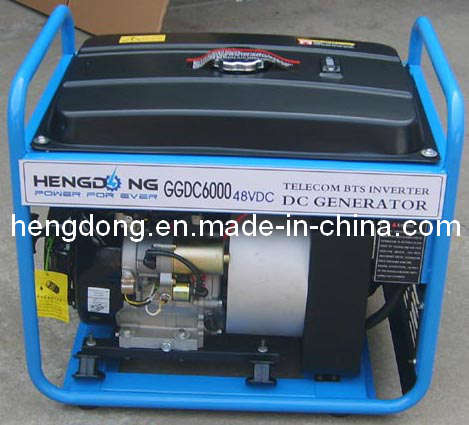

New style in 2012, 6.0KW Digital DC Gasoline Generator GGDC6000, with CE, GS, EPA certificate.
|
DC-Generator |
MODEL |
GGDC6000 |
|
Type |
Permanent magnet, brushless, bearing-less |
|
Voltage Regulate |
Automatism electronic regulate |
|
Rated Dc Output |
5.5KW |
|
Max Dc Output |
6.0KW |
|
Voltage output regulation |
0.5-1.0VDC |
|
Ripple quotiety |
150mV (when connecting on the battery) |
|
Rated Dc Voltage |
48V |
|
Rated Current |
105A |
|
Run output Dc Voltage |
52.5V |
|
Gasoline Engine |
Model |
SG390FA |
|
Type |
OHV Forced Air-cooled, 4-Stroke |
|
Bore× Stroke |
1-88× 64mm |
|
Air cleaner |
Semi-dry double silent type |
|
Cooled way |
Air-cooled |
|
Displacement |
389ml |
|
Compression ratio |
8.2: 1 |
|
Max torque |
27.5/2500 N. m / rpm |
|
Ignition system |
Non-contact transistorized ignition (T. C. I) |
|
Spark plug gap |
0.7mm |
|
lubricating oil |
SF or Higher Grade |
|
lubricating oil capacity |
1.1L |
|
Lubrication system |
Pressure Splash |
|
Fuel consumption |
374(g/KW-hour) |
|
Power output |
13/3600 (HP/ rpm) |
|
DC-Generator-Set |
Fuel |
Unleaded gasoline |
|
Starting system |
hand-operated/Electric start |
|
Noise level |
72dB |
|
Oil alarm |
No lube oil Auto stop safekeeping |
|
continuous operating |
11h |
|
Fuel capacity |
25L |
|
Front panel control system |
One-DC Output Socket, DC Output Pilot lamp. Over loading protect& Malfunction Pilot lamp |
|
Dimension L× W× H |
700*560*590mm |
|
Gross/ Net weight |
70/68 |
|
Unit (20FT) |
120 |
Established in July 2007, located in Weiyang district of Yangzhou, a city subordinate to Jiangsu province, Yangzhou Hengdong Mechanical & Electrical Co., Ltd is conveniently suited near freeway with ascendant investment environment. It arranges a settlement of 50 employees, among which there are 30 boasting academic certificate at or above the junior college level or obtaining junior superior title. Most of 8 technicians have served as Chief Engineer or Assistant Chief Engineer in the well-known generator manufacturing enterprises.
The company owns international advanced product research and development center, assembly line, machine performance test line, and generator component test table, which are all provided with computer-control system. Its leading product, HD power brand generators, can be widely applied in the home power solution, cars industry, army connection system, network system and telecom area.
Until now, with the certification of ISO9001, EPA, CARB and CE, the company has provided its products to a lot of different market which includes North & South America, Europe, Africa, Middle-east and Chinese local market.
Hengdong is not only an OEM factory, but also the strong backing of its client who researches and develops new suitable products every year for the ever-changing world wide market. We will be always keep going on improving the product value and creating long time partnership with all our world wide strategic partners.
