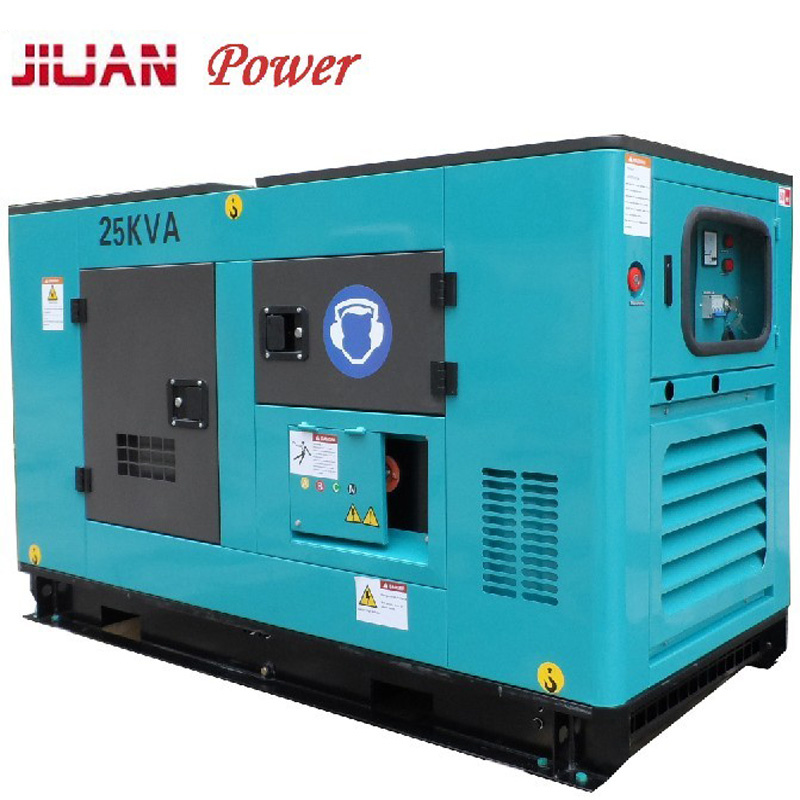

12kVA 20kVA 30kVA 40kVA Wind Power Generator for Sale Stock

professional generator oem factor in guangzhou
. stock available
. generator 40kva
. sgs soncup

1. factory directly! professional generator oem factory guangzhou
2. super silent 60db(a) at 7 meters
3. certificate: sgs, soncap approval


1. description of products

model	cd-d40kva
powered by deutz engine
continuous power (50hz)	30kw/37.5kva
standby power (50hz)	33kw/41kva
engine model	f4l913d
engine power (50hz)	34kw/45hp
engine power max. (50hz)	37kw/50hp
speed	1500rpm
cylinder	4 in line
cooling method	air - cooled
starting method	12v dc electrical start
engine total displacement	2.83 l
bore x stroke	100 x 120 mm
alternator model	184h stamford copy
voltage	380v-400v
electric current	57a
power factor	0.8
phase	3-phases
brush/brushless	brushless
insulation class/protection grade	h class/ip23
g.w	1300 kgs
overall size	2200x1000x1300 mm
20ft	6 pcs
	ats (automatic transfer switch)

after-sales service
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611

terms of payment

t/t
western union
cash

1. trade terms of products

generator warranty	1800 hours or 1 year subject to the earlier one.
delivery items	fob,cnf,cif,exw,delivery guangzhou
delivery time	15-20 days after receiving advanced payment.
generator moq	1pcs
package	pe film+pearl wool+iron frame (standard export packing)
certificate	sgs;cummins authorized factory;tuv;son cap
loading port	guangzhou,shenzhen,shanghai
payment	t/t cash or western union
please give detail needs in your inquiry, so that we can make power solutions for you.

introduction of compay
business type: manufacturer
location: guangzhou,china (mainland)
year established: 2008
registration no.:440111000040106

main products:
professional diesel generator oem factory.
cummins engine for genset;
perkins engine for genset;
china engine for genset;
isuzu engine for genset;
kubota engine for genset;
lovol engine for genset;
diesel welding for genset;
diesel water pump;
genset spare parts


production line of product

our diesel generator set production range is as follows:
* engine (motor) for choice

1. cummins (usa ) 20kva - 2000kva
2. deutz (germany) 20kva - 150kva
3. perkins (uk) 8kva - 2000kva
4. isuzu (japanese) 20kva - 40kva
5. lovol (china) 20kva - 150kva
6. yangdong (china) 8kva - 50kva
7. weichai (china) 8kva - 150kva
8. shanghai engine
9. yuchai engine
10. kubota engine 10kva - 50kva

* canopy for choice
1. silent type (75- 80 db(a) at 7 meters)
2. super silent type (65-70 db(a) at 7 meters )
3. open type
4. trailer type (mobile)
5. container type
6. parallel system

* alternator for choice (brushless with avr)
1.stamford newage
2.leroy somer
3.marathon
4.leateck

features of gen.set with deutz engine

1.12 months world-wide warranty service
2.short delivery time,as we always have deutz engine in stock
3.spare parts are easy to get from worldwide market with much cheaper price
4.perfect after-sales service network
5.both 50hz @1500rpm and 60hz@1800rpm are available
6.rigorous test including 50% load,100% load and 110% load
7.stronger power with reasonable price
8.international brand feel free to use
9.deutz brand has air-cooled engine and water cooled engine for option

standard configuration of generator with deutz design:

1.original engine - germany brand

2.alternator coupled with stamford alternator,leroy somer alternator,marathon alternator,copy stamford alternator

3.soundproof canopy, super silent, open frame, trailer mounted,containerized

4.controller smartgen 6120 with amf as standard or deepsea 6020

5.circuit breaker chnt,abb,schneider,ask

6.base fuel tank 8 hours continuous running for soundproof type, 24 hours continuous running for super silent type.

7.free-maintenance battery with auto battery charger

8.industrial silencer each 2 pcs per set with flexible exhaust hose.


alternator features:

world famous brand ac alternator: stamford,leroy somer, marathon,faraday,copy stamford
   brush less with avr
1.brush less 4 poles,rotation magnet
2.avr voltage regulation less than ±1%,avr self-regulated
3.protection class ip23
4.insulation system is class "h"

control system features:

standard smartgen 6120 or deepsea dse6020

language display: english;spanish;russian;chinese

data display: power,voltage,current,frequecny,speed,oil pressure,water temperature,fuel level

protection (auto alarm system):high voltage;low voltage;high speed;low speed;over current;lose phase;low oil pressure;high water temperature

functions: auto start;auto stop;ats(auto transfer system);amf(auto mains failure system)

why choose us

good reasons why you choose jiuan generator:

1.professional generator oem factory in guangzhou.

2.14 years experience in generator and exporting.

3.high quality products at affordable prices.

4.products lines verified by professional inspectors.
5. place orders safety.

6. all engines and alternators are brand new and original - credible.
7. controller deepsea or smartgen -big brand.

8. air breaker abb chnt schneider ask - safety.

9. 1% parts free are available for your order.

welcome to contact us
www.jiuan-power.com

diesel generator set 32kw
generator specifications	generator model	cdy40kva
	generator prime power	30kw37.5kva
	generator standby power	33kw/41kva
	generator engine model	Y4105G
	generator alternator	stamford;marathon;leroy somer;faraday;stamford copy
	canopy for choice	super silent;silent;open frame;trailer
	controller	smartgen or deepsea
	dimensions (l*w*h)	2300*1100*1400(s)mm
	20ft/40hqft container	according to you
generator warranty	1800 hours or 1 year subject to the ealier one.
generator moq	1pcs
certificate	sgs;cummins authorized factory;tuv;soncap
payment	t/t or cash
please give detail needs in your inquiry, so that we can make power solutions for you.
