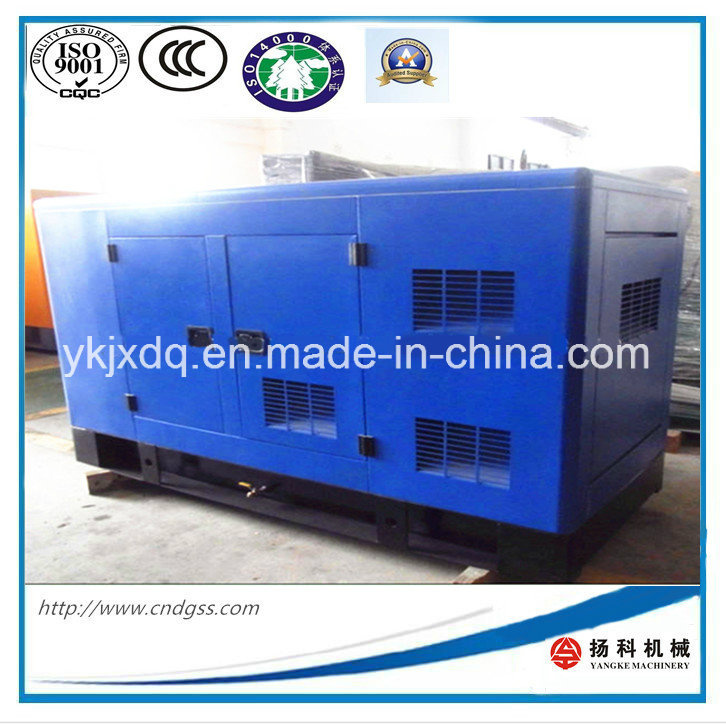

120kw/150kVA Silent Generator with Perkins Engine

1)Perkins engine+Brushless alternator
2)68db@7m, small size
3)Low fuel consumption

Prime Power	120KW/150KVA	Standby Power	132KW/165KVA
Rated Speed	1500RPM	Output Frequency	50HZ
Phase	3	Rated Voltage	400V
Engine Model	1006TAG2	Alternator Model	UCI274F
Fuel Consumption of 100% load	41L/H	Fuel Consumption of 75% load	31L/H
Voltage Regulation Rate	≤±1%	Random Voltage Rate	≤±1%
Frequency Regulation Rate	≤±5%	Random Frequency Variation	≤±0.5%
Dimension (open type)	2000×750×1250(mm)	Weight (open type)	1270kg
Dimension(silent type)	2680×900×1550(mm)	Weight (silent type)	1530kg


 Diesel Engine


Engine Model	1006TAG2
Number of Cylinder	6
Cylinder arrangement	Vertical in-line
Cycle	Four Stroke
Aspiration	Turbocharged
Bore×Stroke (mm×mm)	100×127
Displacement (L)	5.99L
Compression Ratio	17.0:1
Prime Power/Speed(KW/rpm)	143/1500
Standby Power/Speed(KW/rpm)	178.8/1500
Speed Governor	Mechanical
Cooling System	Water-cooled, 4°C Radiator As Standard, 50°C Is Optional
Speed Stability(%)	≤5%
Total Lubrication System Capacity (L)	19.0
Coolant Capacity(without radiator) (L)	41.0
Fuel Consumption at 100% Load(g/kwh)	41(at 1500RPM)
Starter Motor	DC12V
Alternator	AC12V


Alternator Specifications


Alternator Model	UCI274F
Alternator Brand	Stamford
Exciter Type	Brushless, Self-excited
Rated Output	160kva
Rated Speed	1500RPM
Rated Frequency	50HZ
Phase	Three
Rated Voltage	400V (Available with customer requirements)
Power Factor	0.8
Voltage Adjust Range	≥5%
Voltage Regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP21-23

Standard Genset Controller

 Our standard genset controller provides functions as follows:
1.Start/Stop controller
2.Ampere meter
3.Voltmeter and selector switch
4.Frequency meter/ Water temperature gauge/ Oil pressure gauge/ Hour counter/ Battery voltage meter
5.Emergency stop pushbutton
6.Alarm System: Over speed, High Engine Temperature, Low Oil Pressure, Charge Fail
7.Protection System: Over speed, High Engine Temperature, Low Oil Pressure, Emergency Stop, and the other protection function pre-setting


Packaging & Delivery

Packaging Detail:	generator standard exporting package
Delivery Detail:	within 5-25working days after the deposit



Company Information

Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.


With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.


We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.


 Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.

FAQ:
(1)  Your company is factory or Trade Company?
       Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2)  Your diesel generator power range?
      Answer: Now we mainly produce QS series 8-3000kva brushless alternators,
(3)  Which brand Electrical Generator you produce?
      Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel  generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
