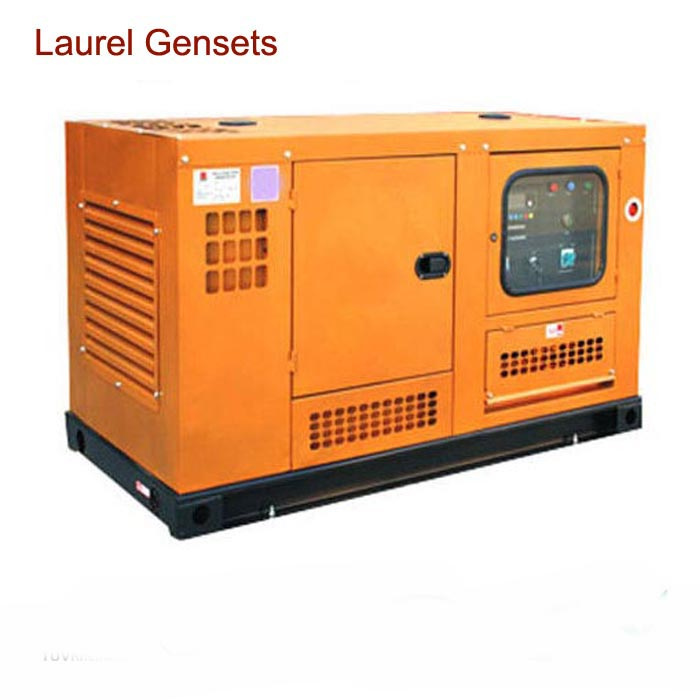

Silent Diesel Generator Set with China Engine , 12 Cylinders Three Phase
Generator Data:
Voltage Available: 50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power: comply with GB/T2820-97(eqv.ISO8528). Genset can run unlimitedly under certain power range. One hour 10% over load in every 12 running hours is allowed;
Standby Power: standby power is the limit value of maximum output for emergency use. It is off-oil power,
overloading is prohibited
Genset Model |
LF400GF |
Prime power(KW/KVA) |
360kw/432kva |
Standby Power(KW/KVA) |
396kw/475kva |
Voltage: |
220/230/240/380/400/440V |
Rated Speed (rpm) |
1500/1800rpm |
Frequency (Hz) |
50/60Hz |
Rated Current (A) |
722/649 |
Connection: |
3 phase 4 wire |
Power Factor: |
0.8 |
Engine Model: |
12V135BZLD |
Alternator Model: |
KP-STF |
Weight (kgs)-Open |
4180 |
Weight (kgs)-Silent |
4680 |
Dimensions (mm)-Open |
3300*1350*1900 |
Dimensions (mm)-Silent |
3700*1600*2250 |
Three phase generator set with china engine generator:
Model: 400GF, 12Stroke
Aspiration: Turbo
Air Displacement: 25.8L
Cylinder numbers: 12 cylinders
Bore x Stroke : 135*155(mm)
Compression Ratio: 16.5 :1
Max. Power: 445Kw
Governing System: Mechanical
100% Load (Standby): 210/Kw.h
Oil Capacity: 57.4L
Alternator HR-STF354C
Phases: 3
Connection: 3Phase 4 Wire, Y type
Bearing numbers: 1
Power Factor: 0.8
Protection Class: IP23
Altitude Condition: below 1000M
Excitation: Brushless, self-excitation
Insulation class/Temp. rise class: H / H
Tel. Influence Factor TIF: below 50
Tel. Harmonic Factor THF: below 2%
Steady State Voltage Regulation: ±1%
Alternator Capacity: 396kw
Product Description:
1. Control System:
1)Basic control system, the basic type control system is provided with a current meter, a volmeter,
a frequency meter, an oil pressure guage, a water thermometer and indicator lights on the control
cabinet and 4 additional protection fuctions
2)AST (Automatic Start Control System), Optional Automatic Start Type System is provided When
there is an interruption in the commercial power supply (or there is a start signal in other generator
sets), this generator set will, subject to time delay acknowledgement (0-30 S adjustable), be
automatically started (1-8 times adjustable). In addition, it is provided with a basic protection
function and digital or meter indication of voltage, current, frequency and rotation speed parameters.
3)Sync Parallel Control System, this control system can connect 2 or 3 or 4 gensets to make more
larger power. such as: if you want 1000kw power, you can choose 2 sets 500kw gensets to work together
2. ATS (Automatic Transfer System)
The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an
indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving
the fuction of automatic changeover between the power supplied by the grid and the power generated by
the genset.
3. Open;Silent;Trailer type
1) Open Type
Diesel generator set using some of the more rigid connection, diesel engine and generator connected
after installed in the chassis.through the sensor, intuitively to display the running condition of diesel
engine to the operator, and with these sensors, you can set a limit, when reach or exceed the limit control
system will alarm in advance, this time if the operator did not take measures to control system will
automatically stop unit, diesel generating sets is to take the way of self protection.
2) Silent Type:
It is the outside of the generating set, sound attenuation with a closed shell, and inlet and vent, for heat
dissipation.Reduce the noise of the diesel generator set
3) Mobile generator (Trailer Type):
Trailer type generator has many advantages:
1. The maneuverability is strong, can be flexible in any environment requires electricity use.
2. The excellent performance of field construction, able to adapt to a variety of harsh environment,
And high- capacity fuel tank.
Packaging & Shipping
1. Deliver time: About 15-25 days After Received Your Deposit
2. Packaging: Diesel generator set: plywood case/plastic packing/carton
Gas generator set: plywood case/plastic packing/carton
Gasoline generator set: carton
Alternator: plywood case/wooden case
Spare parts: carton
3. Product Warranty:
Diesel generator set/Gas generator set/Alternator: 12 months from shipment date.
Gasoline generator set: 6 months from shipment date.
Spare parts: 3 months from shipment date.
Factory Test report:
The test items before delivery are mainly as follows:
1. Each genset shall be put into commission more than 4 hours totally. They are tested on idle load, fully
load and 10% overload;
2. The noise level is tested
3. All of the meters on the control panel shall be tested
4. The appearance of the genset and all of the label and nameplate shall be checked
Our main products:
We are engaged in the production and sale of diesel generator sets, generators, engines, water pumps
and other agricultural machinery products. We have obtained the relevant certifications such as ISO,
CE,ROHS, GS, TUV etc.
Guarantee Service
We have 34 years of export experience. We deliver not only our products, but also our value-added
technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty
Holdings products guarantee under this warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all
our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the
original purchasers for all gasoline associated products. The warranty period starts from the day of
delivery to the original retail purchaser.
Guangzhou Laurel & Honesty Holdings, founded in 1981, is professional company focusing on generators and Agricultural machines.
It has been 34 years since our factory was founded. Our main products are diesel generator sets, generators, marine engines, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE, RoHS, GS, TUV etc.
QUALITY GUARANTY POLICY
1. Guaranteed products
All kinds of Generator sets, generators, engines, pumps, control panels and agricultural machines sold by our company, Guangzhou Laurel & Honesty Holdings.
2. Base warranty period
1)The warranty period of generator sets is 2 years or 1200 running hours (the earlier one shall prevail) from the date when the generator set have been delivered from the factory.
2)The warranty period of generators, engines, pumps, control panels and agricultural machines is 1 year or 1000 hours from the date when the goods have been delivered from the factory whichever is coming first, the warranty period will be ended.
3)Any other special stipulation according to the order.
3. Guaranty range
The user shall strictly follow the operation handbook and service statement (included all the products mentioned above) to maintain and keep the equipments, the goods has any malfunctions caused due to the manufacture quality problems in the guarantee period.
4. Limit of guaranty
1)The goods is damaged during transport, Carrier shall take charge of the amends.
2)The goods is damaged due to unsuitable setting or doesn't follow the installation manual which offered by our company.
3)The goods is damaged due to the user doesn't follow the service statement to replace the filter and lube oil in the stated period.
4)The goods is damaged due to the user doesn't use the appointed oil filter, fuel filter, air filter which mentioned in the manual book.
5)The goods is damaged due to the user make bold to replace or use the spare parts or add other equipment on it without our company approbation.
6)The goods is damaged due to disassembly parts from the equipments without our company approbation.
7)The goods is damaged due to unsuitability place, start, warm-up, stop and so on.
8)The goods is damaged due to using disqualification fuel or other substance mixed in the fuel, such as water, impurity, contamination and so on.
9)Our company shall provide free maintenance service for malfunctions caused due to the manufacture quality, but not take charge of any overhead expensed, losing and any fault analysis fee.
. AFTER-SALES SERVICE POLICY
Guangzhou Laurel & Honesty Holdings will meet the needs of consumers as possible. They can expect to enjoy our specialized service from product manufacturing, delivery and installation to the technical support and maintenance during operation process. After receive the feedback of quality problem, we answer the consumers and supply problem solve program in 24 hours. Do our best to supply satisfied service.
You can get the following services:
1. Provide complete qualified products:
Once business cooperation is established, customers will immediately be presented with detailed technical information according to products.
(1)Product information
(2)Engine information
(3)Alternator information
(4)Automatic Start-Stop Systems information
(5)Insulation Protection information
2. Provide complete technical support, including installation and commissioning services:
After the customer receive the goods, we can provide installation and commissioning advisory guidance, and also can assign engineering technologist with installation experience to the scene and guide the on-site installation if necessary.
3. Professional technology personnel training:
If the customer requirements, we will arrange technical personnel training, guidance.
4. Maintenance Service.
5. Supply technology assistance for your whole life.
