1)home and outdoor use
2)6 pcs DC, 3 USB and 1pc AC output
3)safe and convenient
4)mulfuntional function

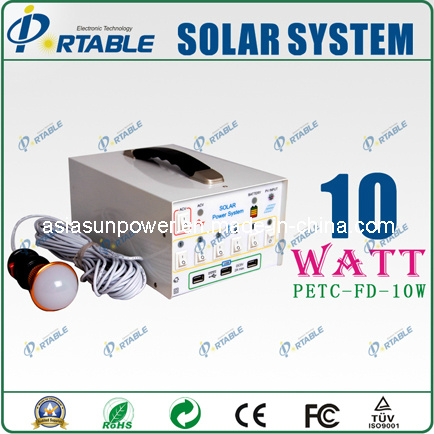

Solar System/Portable Solar System for residential use (10w)
Characteristics
10w solar home system has high conversion of silicon solar cell, high euphotic rate and mechanical strength, good resistance to climate, preventing wind, hail. Which can effectively resist corrosion of moisture and salt fog.
Applicance range
10w solar home system/portable home system can Supply electricity to home appliance with low powersuch as mobilephone charging, lights, digital camera, video camera, electric tools, music CD, DVD, electric power whose voltage is 12v, Design and manufacture as the small DC power supply system, for farmers in remote areas, and posts, fieldwork, small tourist camping It is the necessary perfect product in the portable office, fieldwork, and cutoff. Besides, it has 150W inverter, so it can load fan, TV, laptop and so on.
Operation of our solar home system
1 When product is produced, the power switch is "OFF", turning "ON" when using.
2. Click AC 'ON', the AC have output, and the battery indicator can light (Clicking " Light touch switch ", LED digital diode display "6. ", showing off and on. Meantime, AC220V DC12V output. )
3. Click 6 pcs of DC 'ON', the DC output can have output
4. Two pcs of solar connectors, and the Solar panel indicator can be light, when the PV input.
|
main parts |
specification |
parameters |
quantity |
|
solar panel |
mono/polycrystalline |
10W |
1pcs |
|
solar battery |
Sealed lead-acid |
6V/12AH |
2pcs |
|
solar control system |
controller |
10A |
1pc |
|
control box |
|
1pc |
|
output |
DC 12V |
12V/10A |
1pc |
|
USB 5V |
5V/500mA |
1pc |
|
reading card acoustics |
Loudspeakers |
4R/10W |
1pc |
|
SD, TFT card,UDisk |
Support2.56M/8G |
|
|
Infrared Remote Control |
|
1PC |
|
Radio |
FM87.5-108 |
1pc |
|
AC Charge |
AC86V~260V |
15V/2A |
1pcs |
|
High Power LED Lamp:12V/3W 12V/0.25A |
1PCS |
|
PRODUCT(CM) |
L40*W7.5*H31 CM |
|
PACKING |
1PC/CARTOM |
L45*W12*H37 CM |
|
Wooden case52*20*47CM 8KG |
|
This system can support: |
|
Design load appliances |
Model |
Load Power |
Quantit |
Daily Working Hours |
Daily Power Consumption |
Continued Working Days |
|
Lighitng |
Fluorescent lamp |
40W |
1 |
2 |
80WH |
1.5Days |
|
Color TV |
21 Inch |
60W |
1 |
2 |
120WH |
1Days |
|
Laptop |
SAMSUNG R528 |
60W |
1 |
2 |
120WH |
1Days |
|
Printer |
Inkjet |
30W |
1 |
0.5 |
15WH |
7Days |
|
Fax |
Inkjet |
150W |
1 |
0.5 |
75WH |
1.5Days |
|
Satellite TV Receiver |
|
25W |
1 |
2 |
50WH |
2Days |
|
Fan |
Haier |
50W |
1 |
2 |
100WH |
1Days |
|
Radio |
SONY ICF-B100 |
3W |
1 |
6 |
18WH |
7Days |
|
Mobilephone |
iPhone 3GS |
2.5W |
2 |
8 |
40WH |
3Days |
|
Intercom |
MOTO |
7.5W |
1 |
6 |
45WH |
2.5Days |
|
Stallite Phone |
MOTO |
12W |
1 |
2 |
24WH |
5Days |
|
GPS |
|
4W |
1 |
4 |
16WH |
8Days |
Shenzhen Portable Electronic Technology Co., Ltd., is mainly devoted to the research, development, manufacture and sale of solar products and power supply. Our solar mobile/laptop chargers, portable power, solar modules, solar infrared security lights, solar street light, solar controller and solar home system etc supply have been successfully sold to clients in Europe, the USA, the Middle East, Asia, Australia and South Africa.
There is an elite R&D team in the company which is LED by the senior engineers in the solar energy photovoltaic application industry. With many years' technical accumulation and experience deposition, this team becomes full-fledged nowadays and involves into research and development based upon market application and information feedback from customers in the aspects of environmental-friendly energy, energy conservation, pollution and consumption reduction, intelligent illumination and control as well as electric hard disc.
Adhering to the principle of "Your success is our success", we pursue the goal of creating more values for our customers through providing higher application demands to different customers, promoting new products and forging rapid development paces diligently.
