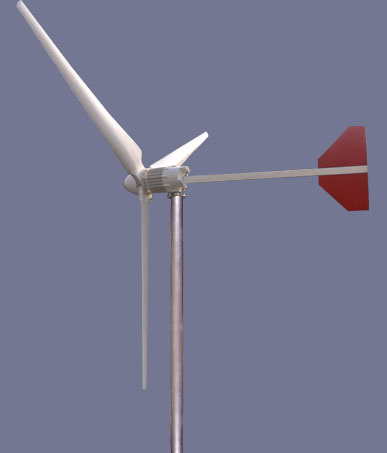

10kw Wind Generator

A wind generator with beautiful shape, safe, portable and reliable. It is especially designed to meet the demand from individual householders for a renewable energy source.
The WFD10KW is used to charge 240V batteries. Equipped with suitable DC to AC inverter, it is capable of supplying power for:
Refrigeration, Electric fan, Lights, Air conditioner, Communication equipment.
When used in conjunction with a suitable Grid Tie inverter WFD10KW can also be connected to the power grid.

Features:
*Reliable passive self furling
*Autobrake slows down the blades spin when the batteries are charged
*Marine quality powder coated aluminium body, water tight housing
*Iron Boron Neodymium magnet alternator.
*Reliability: The design of the body efficiently flows excess heat into the wind reducing operating temperature
*Two years warranty; Operational life expected to be in excess of 15 years.

Rated Power: 10 KW
Max Power: 12 KW
Voltage Options: 240V & Grid Tie
Start Wind Speed: 3 m/s
Rated Wind Speed: 12 m/s
MAX WIND SPEED: 45 m/s
Cut-Out Wind Speed: 13 m/second
Blade Pitch Control None, Fixed Pitch
Over speed Protection: Side furling with
Gravity return
Temperature Range: -40 to +60 Deg. C
Rotor Diameter: 6.40 m
Rotor speed: 180 rpm
Blade number: 3
Blade material: Reinforced fibreglass
Generator: 3 phase permanent magnet alternator
Turbine Weight(kg): 120

The Acoustic Reference Wind Speed
*Turbine Sound Pressure Level at 7.3~8.7 m/s: 57.2~70.1 dB
*Background Sound Pressure Level at 7.3~8.7 m/s: 52.3~64.1 dB
*Different between background and turbine: 4.9~ 6.0 dB
Test was made at 10 meters from the turbine.

Electrical Installation
1) On Grid Connecting
2) Off Grid Connecting
In most cases the loads will be AC(alternating current) and they will be supplied through a DC-to-AC inverter.
