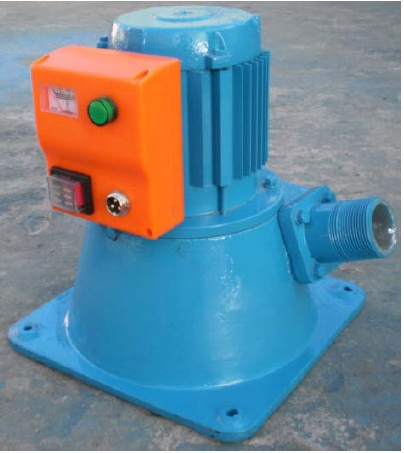

T18-0.5DCT4-Z is a AC direct systems consist of a turbine-generator unit producing AC power which is used as needed. That is, it is fed directly to the appliances. No need of battery and inverter, T18-0.5DCT4-Z offers a complete water to wire system with integral turgo turbine, generator and valve flow control.
Output voltage and frequency are controlled by the electronic load controller(with ballast). The power is monitored and that which is not used by the appliances is directed to the ballast.
As little as 5 to 7 liter per second (l/s) falling 18 meter through a pipe, it can supply enough power to comfortably run a small household. This machine is compact, easy to install and requires little maintenance except lubricating the bearing every few months.
|
Item |
Parameters |
|
Model |
T18-0.5DCT4-Z |
|
Water Head Range |
13 – 18 meter( 43 – 59 feet) |
|
Water Flow Range |
5 – 7 liter/second |
|
Water Pressure |
26 PSI |
|
Rated Power Output |
500W |
|
Intended voltage |
115/230V~ |
|
Rotary Speed |
1500 rpm |
|
Turbine runner type |
Turgo |
|
Runner diameter |
150 mm |
|
Number of buckets |
12 |
|
Number of nozzles |
1 |
|
Jet diameter |
50 mm |
|
Generator |
Single phase permanent magnet alternator |
|
Power factor |
1.0 |
|
Insulation level |
B/B |
|
Protection level |
IP44 |
|
Temperature |
-25~+50C |
|
Humidity |
≤90% |
|
Safety protection |
Short circuit, over load, Islanding, Grounding fault |
|
Packing material |
Fiberboard |
|
Packing size |
38 x 34 x 40 cm |
|
Gross weight |
19 kg |
Suzhou Yueniao Machinery & Electronics Imp & Exp Co., Ltd. is one of the pioneer renewable energy business and has been in this field since 2002. We are dedicated exclusively to the business of small wind generator, mini hydroelectric generator and solar energy.
As a manufacturer with advanced technology, we are making in our own workshop the wind turbine from 300W to 20kw with CE certificates. Beside that we are dealing with business of mini hydroelectric generator from 200W up to 60KW and solar panel from 20W to 280W.
We do not claim any of its products to be the best, but we are proud to hear the owners of our products praise them. And that is what makes all the time and effort we spend on our products worthwhile.
Thank you for your support!
