| Price: | US $ 12000-15000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Paypal,Western Union |
Main technical data as follows:

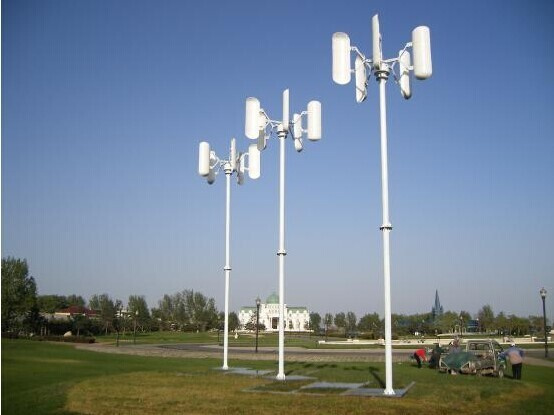

1. Machine Type: Vertical-axis wind turbine
2. Blade form: C shape
3. Blade number: 5 pcs
4. Blade material: glass fiber reinforced plastic
5. Type of generator: permanent-magnet direct drive 3 phase AC

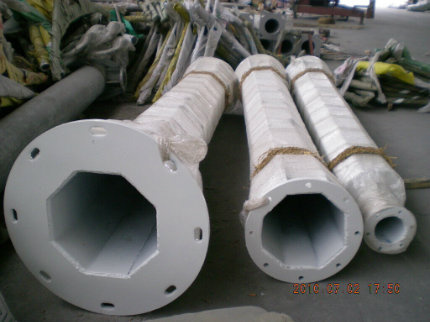

6. Type of tower: guy wire or free standing
Power: 10KW
Blade diameter (m) : 6.0
Rated Rotated speed(r/min) : 100
Rated speed (m/s) : 11
Rated power : 10KW
Max power: 15KW
Output voltage (v) : 380
Start up wind speed (m/s):2
Work speed (m/s): 3-25
Security wind speed(m/s):50
Capacity and quantity of battery: 12V200AH28 pcs
speed regulation: leaning tail + electric brake
Can supply power for: Small villages, Air conditioners, Refrigerators, Water pumps, Cookers, Color television sets, Washing machines, Lighting, Electric fans, and Charge
Life span:20-25 years;
| VAC-5KW vertical axis wind turbine generator | |
| Rated Power | 5KW |
| Blades | C-shaped |
| Blades number | 5 pc |
| Rotor Diameter | 3.8 m |
| Blade Length | 3650 mm |
| Blade Width | 300 mm |
| Blade Weight | 20 kg |
| Rated Rotated Speed | 100 r/m |
| Rated Wind Speed | 10m/s |
| Output Voltage | 220v |
| Start Up Wind Speed | 2m/s |
| Operating Wind peed | 3-25m/s |
| Security Wind Speed | 40m/s |
| Output Controller System | charger and inverter |
| Battery | 12V200AH 18pcs |
| Prod Model: | VAWT |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Blades: | 5 PCS |
| Axis Type: | Vertical |
| Rotating Shaft: | Vertical |
| Stress Way Of Blade: | Resistance |
| Number Of Blade: | Multiple-Blade |
