We also offer various kind of other small hydro turbine generator
Axial flow tubine generator
Francis Turbine Generator
Pelton Turbine Generator
Inclined-jet water turbine generator
Cross flow water turbine generator
Tubular water turbine generator
Impulse type water generator
Permanent magnet generator
2. Main specifications and technical parameters

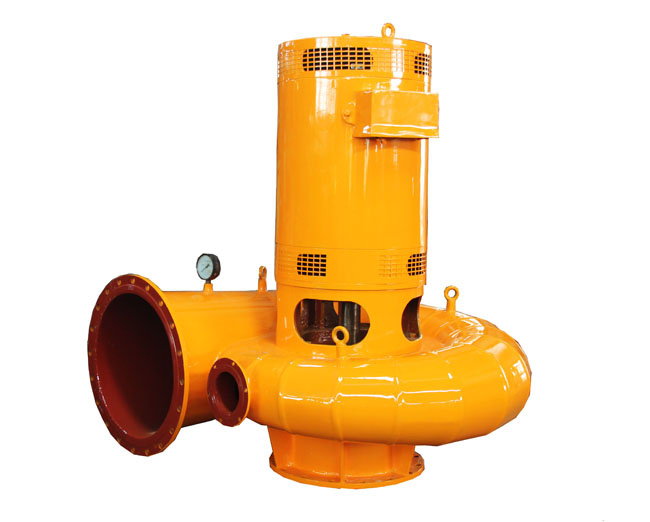

2.1 Model type: Volute axial type
2.2 Power: 300 watts 100 kilowatts
2.3 Voltage: 110V, 220V, 380V
2.4 Frequency: 50Hz 60Hz
2.5 Water head: 1.0 meter 10 meter
2.6 Flow: 0.017m³ /s— 1.66m³ /s
2.7 Rotating speed: Four poles 1, 500 rpm; Six poles 1, 000 rpm; Eight poles 750 rpm
| Name | Power (KW) | Water head (M) | Flow(m³/S) | Rotating speed (R/M) | Voltage(V) | Frequency (Hz) | Transmission |
| Volute axial flow water turbine generator | 0.3 | 1.5-4 | 0.045-0.017 | 1000 | 220 | 50 | Direct |
| 0.6 | 2-4 | 0.068-0.034 | 1000 | 220 | 50 | Direct |
| 1.0 | 2.5-6 | 0.085-0.035 | 1000 | 220 | 50 | Direct |
| 1.5 | 2.7-8 | 0.114-0.0382 | 1000 | 220 | 50 | Direct |
| 2.0 | 3-10 | 0.128-0.0385 | 1000/1500 | 220 | 50 | Direct |
| 3.0 | 3-12 | 0.185-0.0464 | 1000/1500 | 220 | 50 | Direct |
| 5.0 | 3.5-15 | 0.251-0.0586 | 1000/1500 | 220/380 | 50 | Direct |
| 8.0 | 4-16 | 0.352-0.088 | 1000/1500 | 220/380 | 50 | Direct |
| 10 | 5-18 | 0.34-0.094 | 1000/1500 | 380 | 50 | Direct |
| 12 | 5-18 | 0.395_0.10 | 1000/1500 | 380 | 50 | Direct |
| 15 | 5-18 | 0.47_0.132 | 1000/1500 | 380 | 50 | Direct |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
