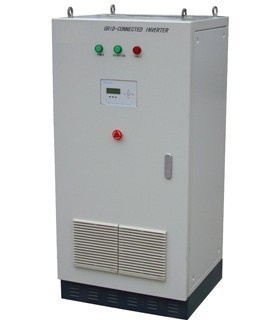

PV grid-connected power system includes PV modules, grid-connected inverter, and meter and power switchboard. The PV modules convert the solar energy to the DC power. Then the grid-connected inverter the DC power to the sine wave AC power which has the same frequency and phase with the grid voltage. The AC power FEED-in the grid partly and the other power supply the local loads.
Product advantages:
1) Using U. S. TI' DSP chip to control.
2) using Japan's Mitsubishi IGBT modules, to enhance system reliability.
3) Maximum Power Point Tracking technology(MPPT), MPPT Max. Efficiency>99%.
4) Active and passive two kinds of power brown-out detection, to achieve control of anti-island.
5) with Wide DC input voltage range.
6) EMC priority, Strong anti-interference ability.
7) circuit frame compact, max. Efficiency≥ 95%.
8) pure sine wave output, automatically synchronized with the grid tracking, power factor close to 1.
9) Fed into the grid mode selectable low frequency transformer or non isolated transformer.
10) Inverter current double closed-loop control, low current harmonic content, pollution-free and non-shock to grid.
11) Perfect protection and alarm functions.
12) big-screen English LCD, perfect display, interface-friendly.
13) A variety of communication interfaces, host computer monitoring, remote data acquisition and monitoring.
14) Outdoor stainless steel shell, fully sealed installation; Protection grade IP65.
Type |
LNSG10KS |
Isolation |
Low frequency transformer isolation |
Max. DC input power |
11KWp |
Max. DC input voltage |
430Vdc |
Max. PV voltage range(MPPT) |
200Vdc~400Vdc |
Battery board Joint type |
connection terminal |
Max. Input current |
55A |
Nominal AC output power |
10KW |
Max. AC output power |
11KW |
THD of AC current |
< 3%(nominal power) |
Power factor |
> 0.99 |
Max. Efficiency |
95% |
Euro efficiency |
93% |
Nominal AC voltage |
310VAC~450VAC |
Nominal AC frequency |
50Hz/60Hz |
Internal power consumption an night |
< 100W |
Automatically put into operation conditions |
When the DC input and power grids meet to the requirements, the inverters automated operation |
Automatic restart time |
5min(time adjustable) |
Protection |
Possess the protecting function of polarity connecting contrary, short circuit, island effects, over heat, over land |
Comm. interfaces |
RS485/RS232/GPRS/Ethernet |
Operating Temp. |
-20c~+40c |
Relative humidity |
0~95%, no condensing |
Altitude(m) |
≤ 2000meters(Over 2000 meters to reduce the using amount) |
Cooling method |
Controlled forced-air cool |
Noise |
≤ 60dB |
Protection degree |
IP20(indoor) |
Size(W*L*H mm) |
550*485*980 |
Weight(kg) |
150 |
