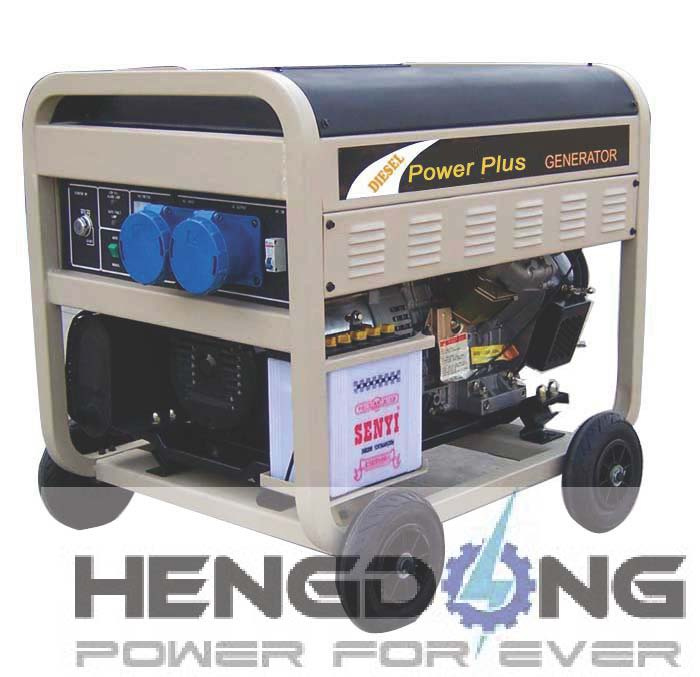

10kw Diesel Generator (Open Type, Air Cool) HD12000
Features and benefits:
A new AVR(Automatic Voltage Regulator)delivers non-fluctuating power.
Powerful HD836VA diesel engine.
Low oil pressure alert system shuts down the engine automatically.
|
Generator |
MODEL |
HD12000 |
|
Type |
Brush single-phase |
|
Voltage Regulate |
AVR |
|
Frequency |
50/60Hz |
|
Rated Ac Output |
10KW |
|
Max Ac Output |
12KW |
|
Rated Ac Voltage |
220V/380V |
|
Power Factor |
COSΦ =0.8 |
|
Diesel Engine |
Model |
HD836VA |
|
Type |
Double cylinder Forced Air-cooled, 4-Stroke Vertical diesel |
|
Bore× Stroke |
2-86× 79mm |
|
Air cleaner |
Semi-dry double silent type |
|
Cooled way |
Air-cooled |
|
Displacement |
836 ml |
|
Compression ratio |
23: 01 |
|
Combustion system |
Direct injection |
|
lubricating oil |
SAE10W30CC |
|
lubricating oil capacity |
1.7L |
|
Lubrication system |
Pressure Splash |
|
Power output |
22/3600(HP/ rpm) |
|
Fuel consumption |
340(g/kw-h) |
|
Generator Set |
Fuel |
0# (summer) -10# (winter) Diesel oil |
|
Starting system |
Electric start |
|
Noise level |
75-80(7m)dB(A) |
|
Oil alarm |
No lube oil Auto stop safekeeping |
|
continuous operatin |
9 |
|
Fuel capacity |
32L |
|
Front panel control system |
Two AC Socket-Ac-circuit one socket |
|
Dc-Output |
DC12V/8.3A customer optional |
|
BATTERY |
6-FM15-12V32Ah |
|
Dimension L× W× H |
900× 700× 830mm |
|
Gross/ Net weight |
110/96 |
|
Unit(20FT) |
60Set |
Established in July 2007, located in Weiyang district of Yangzhou, a city subordinate to Jiangsu province, Yangzhou Hengdong Mechanical & Electrical Co., Ltd is conveniently suited near freeway with ascendant investment environment. It arranges a settlement of 50 employees, among which there are 30 boasting academic certificate at or above the junior college level or obtaining junior superior title. Most of 8 technicians have served as Chief Engineer or Assistant Chief Engineer in the well-known generator manufacturing enterprises.
The company owns international advanced product research and development center, assembly line, machine performance test line, and generator component test table, which are all provided with computer-control system. Its leading product, HD power brand generators, can be widely applied in the home power solution, cars industry, army connection system, network system and telecom area.
Until now, with the certification of ISO9001, EPA, CARB and CE, the company has provided its products to a lot of different market which includes North & South America, Europe, Africa, Middle-east and Chinese local market.
Hengdong is not only an OEM factory, but also the strong backing of its client who researches and develops new suitable products every year for the ever-changing world wide market. We will be always keep going on improving the product value and creating long time partnership with all our world wide strategic partners.
