Specifications
100kw, 600rpm, Wnd generator
1: size:280
2: Range:5-130kw, 30-900 rpm
3:Small started torque, voltage stable,
4: custome ma
100kw,600rpm , Wind permanent magent generator
power |
voltage |
speed |
current |
torque |
Starting torque |
5~80kw |
380~690V |
15~350rpm |
20~180A |
2500~4200Nm |
30~80Nm |
Speed(rpm) |
30 |
60 |
100 |
150 |
200 |
250 |
Weight/ kg |
Power(kw) |
5 |
12 |
22 |
27 |
32 |
37 |
680 |
Power(kw) |
6 |
13 |
25 |
30 |
35 |
40 |
750 |
|
Speed(rpm) |
300 |
400 |
500 |
600 |
900 |
|
Weight/ kg |
Power(kw) |
42 |
55 |
70 |
80 |
110 |
680 |
Power(kw) |
45 |
60 |
80 |
100 |
130 |
750 |
Poles No. |
Frame size |
50Hz/speed |
60Hz/speed |
32 |
280 |
187.5 |
225 |

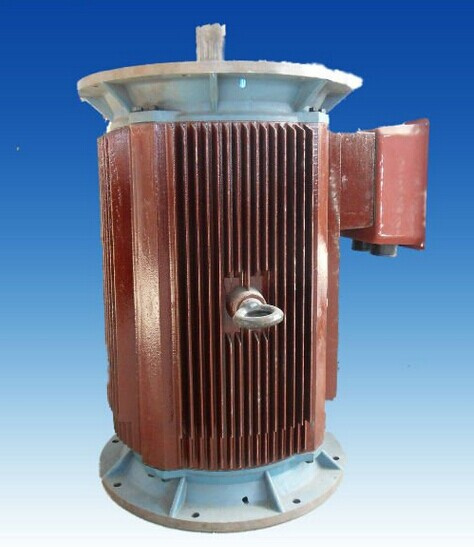

Vertical Axis Wind Permanent Magnet Generator
1:anufacturer, Wind Permanent Magnet Generator :Power range: 1 kw-5600 kw, Speed range: 30 rpm-3000rpm.
2: CE certification,
3: Low start torque. Voltage steady.
4: low speed/rpm, big torque
5: Protection Class: IP54
Product Specification:
1. More poles in the permanent magnet generator,improved the frequency when the speed of fan is low. Solve the problems of instability voltage, Improves the efficiency of the converter, saving the cost of subsequent processing equipment.
2. Our company has the ABB wind turbine testing center, which can effectively guarantee the quality of products.
3. After finite element analysis and design, structure is appropriate, starting torque is small, it is not hard to startup anymore when the fan is low speed, improved wind energy utilization.
4. low velocity magneto generator; eliminates step-up drive, raised reliability, raised power generation efficiency, maintenance.
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
