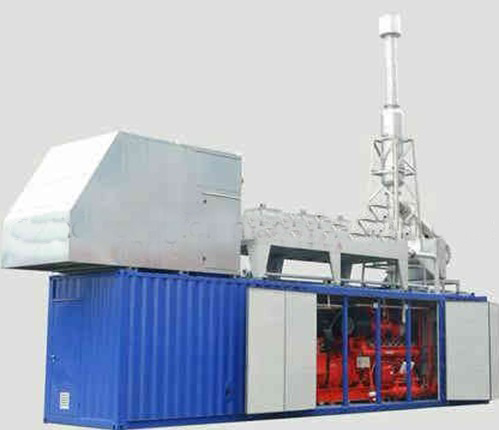

Coal gas generator type; 100kw 500kw 1000kw 1200kw Bio Gas Generator/ natural gas Generator (LYBG500); 500kw1000kw Gasifier Plant; 500kw1000kw2000kw Coal Power Plant; 500kw1000kw Biomass Gasification Plant; 1000kw Bio Gas Plant/Oil Refinery Plant; 500kw 1000kw natural gas generator
|
Name of Parameter |
Value of Parameter |
|
Model of the set |
500GF1-2RW |
500GF1-2P W W |
500GFZ1-RW |
500GFZ1-P W W |
500GJZ1-P W W |
|
Model of gas engine |
W12V190Z L D K -2B |
W12V190Z L D K -2F |
W12V190Z L D K -2J |
|
Model of generator |
1FC6 455-6LA42 |
|
Rated power(kW) |
500 |
|
Rated current(A) |
902 |
|
Rated voltage(V) |
400 |
|
Rated frequency(Hz) |
50 |
|
Rated rotated speed(r/min) |
1000 |
|
Rated power factor(cosφ ) |
0.8(lag) |
|
The number of phase and the wiring method |
Three coils wired by three phase lines or three coils wired by three phase lines and one zero line. |
|
Way for adjusting pressure |
Automatic adjusting pressure |
|
Excitation method |
Brushless excitation |
|
Starting up method |
24VDC Electric starting system |
Technical Parameters
|
Name of Parameter |
Value of Parameter |
|
Model |
W12V190Z L D K -2B |
W12V190Z L D K -2F |
W12V190Z L D K -2J |
|
Number of cylinder |
12 |
|
Arranging way of cylinders |
V shape with included angle of 60° |
|
Diameter of cylinder(mm) |
190 |
|
Route(mm) |
210 |
|
Total displacement(L) |
71.45 |
|
Air inflow way |
Increasing the pressure by using the exhaust produced by the generator to promote the operation of the turbine, thus improve the inlet pressure. The intercooler for air inflow is also used. |
|
Rated power(kW) |
550 |
|
Rated rotate speed(r/min) |
1000 |
|
Min. stable rotate speed with empty load(r/min) |
600 |
|
Dimension(L× B× H) (mm) |
2692× 1560× 2170 |
|
Net weight(kg) |
5900 |
