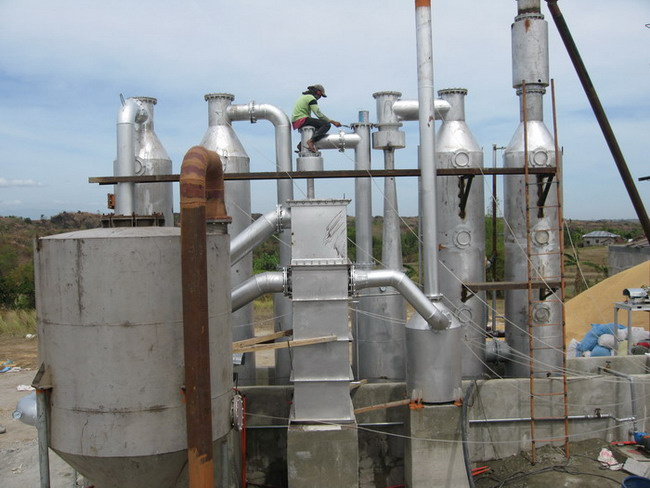

500kw1000kw gas turbine/bio gas plant/natural gas generator/Biomass Gasification Power Plant; 500kw bio gas power; 500kw gas generator; 500kw natural gas generator; Biomass Gasification Power Plant
Conditions for Using
1. Temperature of the straw gas used in this biomass generator set should not surpass 40 Celsius when it is 1m or nearer to the pressure regulating valve for air inflow.
2. The pressure that this biomass generator set can sustain ranges from 3kPa to 10 kPa and the fluctuated frequency of the pressure should not surpass 1kPa/min.
3. The granularity of the impurity should not surpass 5 μ M and its max. Content is 30mg/Nm3.
4. For the straw gas used in this biomass generator set, the volume content of H2 should not surpass 20% and the max. Content of H2S, NH3 and tar are 50mg/Nm3, 20mg/Nm3, and 50mg/Nm3.
5. The moisture content in straw gas should not surpass 40g/Nm3 and the heating value of the straw gas should not lower than 4MJ/Nm3.
For gas that cannot reach the conditions above, special allocation will be took for this biomass generator set after evaluation according to the specific composition, pressure, temperature, etc. Provided.
Technologies Used
This biomass generator set uses electrically fuel gas mixing technology, low-pressure air inflow technology, automatic control technology for burning and safe conveying system.
Name of Parameter Value of Parameter
Model of the set 500GF1-RG 500GF1-PwG
Model of gas engine G12V190ZLDK-2
Model of generator 1FC6 455-6LA42
Rated power(kW) 500
Rated current(A) 902
Rated voltage(V) 400
Rated frequency(Hz) 50
Rated rotated speed(r/min) 1000
Rated power factor(cosφ ) 0.8(lag)
The number of phase and the wiring method Three coils wired by three phase lines or three coils wired by three phase lines and one zero line.
Way for adjusting pressure Automatic adjusting pressure
Excitation method Brushless excitation
Starting up method 24VDC Electric starting system
Name of Parameter Value of Parameter
Model G12V190ZLDK-2
Number of cylinder 12
Arranging way of cylinders V shaper with included angle of 60°
Diameter of cylinder(mm) 190
Route(mm) 210
Total displacement(L) 71.45
Air inflow way Increasing the pressure by using the exhaust produced by the generator to promote the operation of the turbine, thus improve the inlet pressure. The intercooler for air inflow is also used.
Rated power(kW) 550
Rated rotate speed(r/min) 1000
Min. Stable rotate speed with empty load(r/min) 600
Dimension(L× B× H) (mm) 2692× 1560× 2170
Net weight(kg) 5900
