Product Details
Basic Info.
Model NO.: CDC250KVA
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic Diesel Generator
Output Type: AC Three Phase
Diesel Generator: Cummins
Cummins Generator: 250kVA
Cummins Engine: 6ltaa
Generator Engine Brand: Cummins Isuzu Kubota Weichai
Generator Alternator Brand: Stamford Marathon Leroy Somer
Generator Alternator: 100% Copper
Generator Controller: Deepsea Smartgen
Generator Engine Cylinder: 6 L
Generator Fuel Consumtion: 40L Per Hour at Full Load
Generator Displacement: 4L
Export Markets: Global
Additional Info.
Trademark: JIUAN Power
Packing: By Iron Frame
Standard: 250KVA Cummins Diesel Generator
Origin: China
HS Code: 85021200
Production Capacity: 100 Sets/Month
Product Description
JIUAN Diesel Generator Set Advantage:
50hz@1500rpm or 60HZ@1800rpm all are available
AVR delivers non fluctuating power
Panel type digital control panel
12 Volt / 24 Volt electric starter ensures easy starting
Low oil pressure shut down system
Low fuel cut out protection
Low water cut out engine protection
Enclosed structure ensures quieter operation
Alternator (Dynamo) excitation mode brushless self excitation
Three-phase output meets differing requirements
Four Cylinder, four stroke, water cooled diesel engine
8 hours running @ full load on a single tank of fuel
Dual access doors for easy maintenance
Optional automatic or manual transfer switches available
ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
Noise Level (65-70dBA @ 7m)
All ratings are at sea level
After-sales Service:
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611
Contact Sales Manager
24 hours after-sales contact number: 0086 15817087202
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
3. P (UK) 8KVA - 2000KVA
4. ISUZU (Japanese) 20KVA - 40KVA
5. Lovol (China) 20KVA - 150KVA
6. Yangdong (China) 8KVA - 40KVA
7. Weichai (China) 8KVA - 150KVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10KVA - 50KVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System

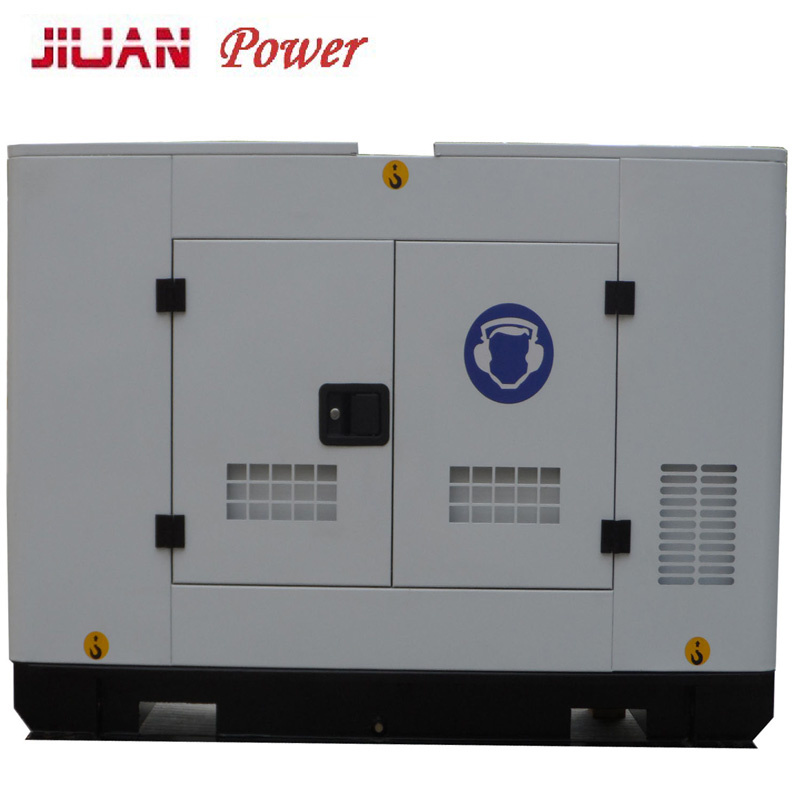

100kva Silent generator |
Generator
Specifications |
Generator Model |
CDC80W/100KVA |
Generator Prime Power |
80KW/100KVA |
GeneratorStandby Power |
85KW/106KVA |
Generator Alternator |
Stamford;Marathon; |
Canopy for Choice |
Silent, super silent |
Controller |
Smartgen |
Dimensions (L*W*H) |
2800*1100*1700(S)
3600*1100*1800(Super Silent) |
20FT/40HQFT Container |
2PCS/4PCS |
Generator Warranty |
1800 hours or 1 year subject to the earlier one. |
Generator MOQ |
1PCS |
Certificate |
SGS;Cummins Authorized Factory;TUV;Soncap |
Payment |
T/T or Cash |
Please give detail needs in your inquiry, so that we can make power solutions for you. |
MODEL |
CD-C80KW/100KVA |
Powered by Cummins Engine |
Prime Power (50HZ) |
80KW/100KVA |
Standby Power (50HZ) |
85kw/106KVA |
Power Factor |
0.8 (Lagging) |
Phase Wires |
3-phases 4-Wires |
Start Model |
Electric |
Protection |
Low oil-pressure, High water temperature,
Over-speed, Over-current |
Engine Model |
DCEC Cummins 6BT5.9-G1 4-Cycle |
Cylinders |
6 |
Cylinder Arrangement |
L |
Bore x Stroke(mm) |
102X 120 |
Compression Ratio |
17.5:1 |
Speed |
1500rpm |
Cooling Method |
Water – cooled |
Starting Method |
24V DC electrical start |
Full Load Diesel Consumption (L/H) |
22 |
Engine Displacement (L) |
5.9 |
Inspiration (L) |
Natural |
Lube Volume (L) |
14.3 |
Coolant Volume (L) |
25 |
Noise (Db) |
≤ 80 |
Alternator Model |
Newage Stamford UCI274C or Leadtech LTG274C |
Alternator Power |
80KW/100KVA Brushles with AVR |
Voltage |
380/220V,400/230V,415/240V,220/127V |
Protection |
IP23 |
Voltage Regulation |
±4% |
Insulation Class |
H |
Voltage Control |
AVR |
Net Weigh (KGS) |
1400 |
Dimensions (L x W x H) mm |
2600*1100*1700(S)
3300*1100*1800 (Super silent) |
Controller |
Smartgen 6110 or Deepsea 7320 |
Standard |
Muffler * 2PCS |
|
Battery 80A * 2 PCS |
Optional |
ATS (auto transfer switch) |
|
AMF(auto mains failure) |
|
Trailer |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
