We are the professional generator manufacturer with OEM factory in Guangzhou
Many style generators are stock available
10kVA 25kVA 30kVA 60 kVA 80kVA 100kVA 125kVA 150kVA 200kVA 250kVA 300kVA 1000kVA available
1. Description of Products

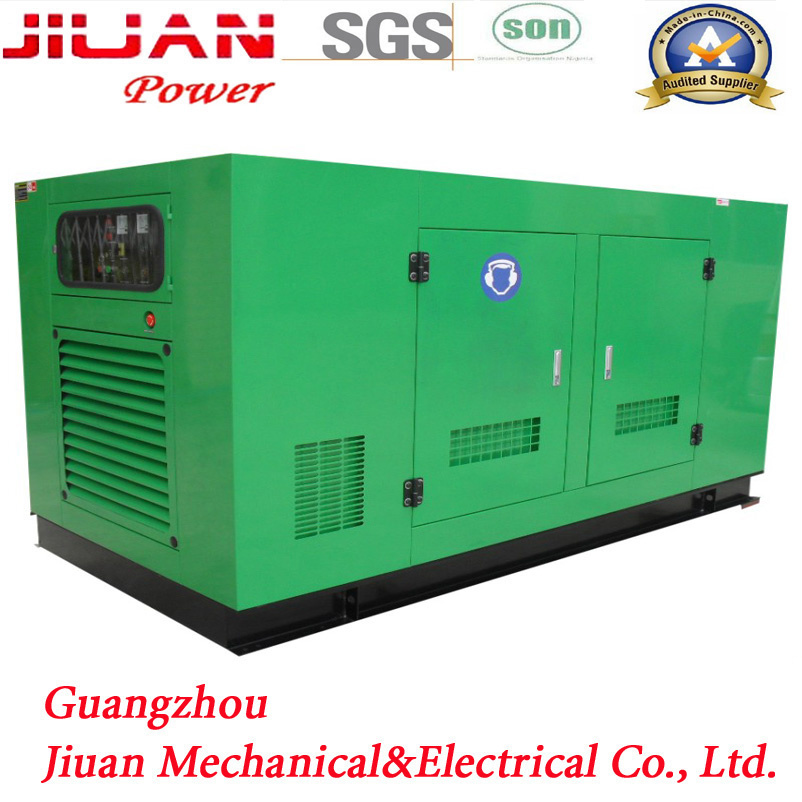

| MODEL | CD-P100kva |
| Powered by PERKINS Engine |
| Standby Power (50HZ) | 85kw/106kva |
| Prime Power (50HZ) | 80kw/100kva |
| Engine Model | Original UK Perkins 1104C-44TAG2 |
| Engine Prime Power (50HZ) | 93.6kw |
| Engine Standby Power (50HZ) | 103kw |
| Speed | 1500rpm |
| Cylinders | 4L |
| Fuel Consumption | 22.6L/H |
| Displacement (L) | 4.41 |
| Compression Ratio | 18.2:1 |
| Bore x Stroke | 105*127mm |
| Lube Volume (L) | 8.0 |
| Coolant Volume (L) | 12.6 |
| Cooling Method | Water - cooled |
| Starting Method | 12V DC electrical start |
| Alternator Model | LEADTECH OR STAMFORD 274C |
| Voltage | 380/220 |
| Electric Current | 151A |
| Power Factor | 0.8 |
| Phase | 3-phases |
| Brush/Brushless | Brushless |
| Insulation Grade | H |
| Protection Grade | IP23 |
| G.W/N.W | 1400KGS |
| Overall Size | 2600*1100*1450 MM SILENT
3300*1100*1800 SUPER SILENT |
| OPTIONAL | ATS(auto transfer switch) |
| Auto Battery Charger |
| AMF(auto mains failure) |
| SUPER SILENT |
2.After-sales Service
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611
3.Terms of Payment:
1)T/T
2)Western Union
3)Cash
4.Trade Terms of Products
| Generator Warranty | 1800 hours or 1 year subject to the ealier one. |
| Delivery Items | FOB,CNF,CIF,EXW,Delivery Guangzhou |
| Delivery Time | 15-20 days after receiving advanced payment. |
| Generator MOQ | 1PCS |
| Package | PE Film+Pearl Wool+Iron Frame (standard export packing) |
| Certificate | SGS;Cummins Authorized Factory;TUV;Soncap |
| Port | Guangzhou,Shenzhen,Shanghai |
| Payment | T/T Cash or Western Union |
| Please give detail needs in your inquiry, so that we can make power solutions for you. |
Features of Gen.set with Perkins Engine
1.12 months world-wide warranty service
2.Short delivery time,as we always have Perkins engine in stock
3.Spare parts are easy to get from worldwide market with much cheaper price
4.Perfect after-sales service network
5.Both 50HZ @1500rpm and 60HZ@1800rpm are available
6.Rigorous test including 50% load,100% load and 110% load
7.High quality;compact design;low noise
8.International brand feel free to use
Standard configuration generator with Perkins engine design:
1.Original UK Perkins engine
2.Alternator coupled with Stamford alternator,Leroy Somer alternator,Marathon alternator,copy Stamford alternator
3.Soundproof canopy, Super silent, open frame, Trailer mounted,Containerized
4.Controller Smartgen 6120 with AMF as standard or Deepsea 6020
5.Circuit breaker CHNT,ABB,Schneider,ASK
6.Base fuel tank 8 hours continuous running for soundproof type, 24 hours continuous running for super silent type.
7.Free-maintenance battery with Auto Battery Charger
8.Industrial silencer each 2 PCS per set with flexible exhaust hose
Introduction of Compay
Business Type: Manufacturer
Location: Guangzhou,China (Mainland)
Year Established: 2008
Registration No.:440111000040106
Main Products:
Professional diesel generator OEM factory.
Cummins Engine Genset;
Perkins Engine Genset;
China Engine Genset;
ISUZU Engine Genset;
Kubota Engine Genset;
Lovol Engine Genset;
Diesel Welding Genset;
Diesel Water Pump;
Genset Spare parts
Production Line of Product
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
3. Perkins (UK) 8KVA - 2000KVA
4. ISUZU (Japanese) 20KVA - 40KVA
5. Lovol (China) 20KVA - 150KVA
6. Yangdong (China) 8KVA - 50KVA
7. Weichai (China) 8KVA - 150KVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10KVA - 50KVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice (brushless with AVR)
1.Stamford Newage
2.Leroy Somer
3.Marathon
4.Leateck
Good Reasons Why You Choose JIUAN Generator:
1.Professional Generator OEM factory in Guangzhou.
2.14 years experience in generator and exporting.
3.High quality products at affordable prices.
4.Products lines verified by professional inspectors.
5. Place orders safety.
6. All engines and alternators are brand new and original - Credible.
7. Controller Deepsea or Smartgen -BIG Brand.
8. Air Breaker ABB CHNT Schneider ASK - Safety.
9. 1% parts free are available for your order.
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
