Professional generator/OEM factory in Guangzhou (nearing the airport)
Some generator stock are available
SGS SONCAP BV ISO
10kVA, 60kVA, 100kVA. 150kVA, 200kVA, 250kVA, 300kVA. 600kVA are available
SPECIFICATION

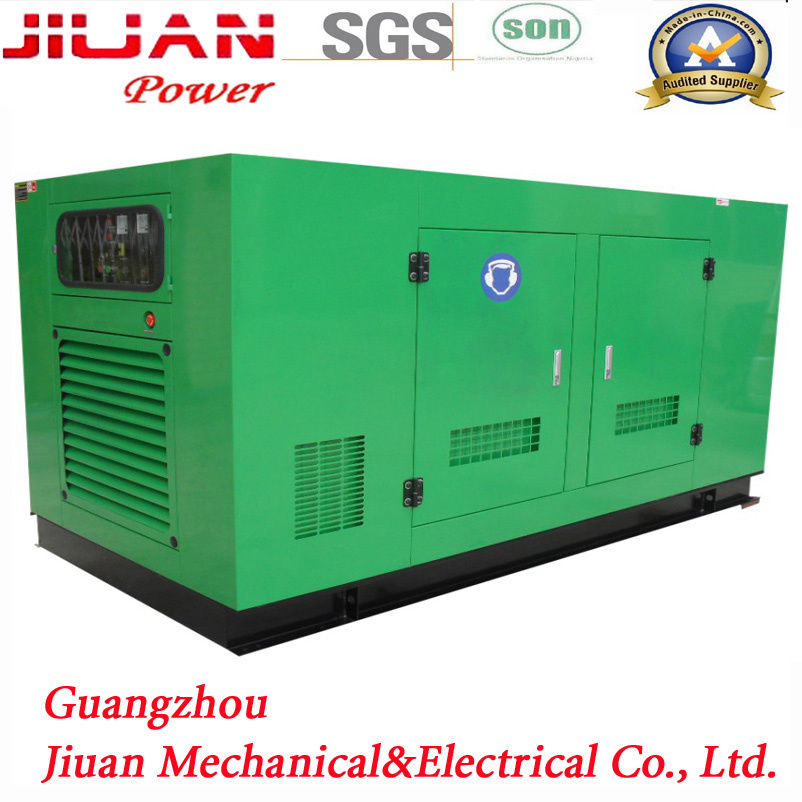

ummins Diesel Generating Set - Model CD-C80KW/100KVA
| MODEL | CD-C80KW/100KVA |
| Powered by Cummins Engine |
| Prime Power (50HZ) | 80KW/100KVA |
| Standby Power (50HZ) | 85kw/106KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection | Low oil-pressure, High water temperature,
Over-speed, Over-current |
| Engine Model | DCEC Cummins 6BT5.9-G1 4-Cycle |
| Cylinders | 6 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 102X 120 |
| Compression Ratio | 17.5:1 |
| Speed | 1500rpm |
| Cooling Method | Water - cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 22 |
| Engine Displacement (L) | 5.9 |
| Inspiration (L) | Natural |
| Lube Volume (L) | 14.3 |
| Coolant Volume (L) | 25 |
| Noise (Db) | ≤ 80 |
| Alternator Model | Newage Stamford UCI274C or Leadtech LTG274C |
| Alternator Power | 80KW/100KVA Brushles with AVR |
| Voltage | 380/220V,400/230V,415/240V,220/127V |
| Protection | IP23 |
| Voltage Regulation | ±4% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 1400 |
| Dimensions (L x W x H) mm | 2600*1100*1700 (S)
3300*1100*1800 (Super silent) |
| Controller | Smartgen 6110 or Deepsea 7320 |
| Standard | Muffler * 2PCS |
| Battery 80A * 2 PCS |
| Optional | ATS (auto transfer switch) |
| AMF(auto mains failure) |
| Trailer |
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
4. ISUZU (Japanese) 20KVA - 40KVA
6. Yangdong (China) 8KVA - 50KVA
7. Weichai (China) 8KVA - 150KVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10KVA - 50KVA
* Alternator for Choice (brushless with AVR)
1.Stamford Newage
2.Leroy Somer
3.Marathon
4.Leatech
Trade Terms of Products
| Generator Warranty | 1800 hours or 1 year subject to the ealier one. |
| Delivery Items | FOB,CNF,CIF,EXW,Delivery Guangzhou |
| Delivery Time | 15-20 days after receiving advanced payment. |
| Generator MOQ | 1PCS |
| Package | PE Film+Pearl Wool+Iron Frame (standard export packing) |
| Certificate | SGS;Cummins Authorized Factory;TUV;Soncap |
| Port | Guangzhou,Shenzhen,Shanghai |
| Payment | T/T Cash or Western Union |
| Please give detail needs in your inquiry, so that we can make power solutions for you. |
Company Show
1.Introduction of Compay
Business Type: Manufacturer
Location: Guangzhou,China (Mainland)
Year Established: 2008
Registration No.:440111000040106
Welcome choose our generator
Contact information:
Mobile:008613501473423
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
