Home Generator Products 1000kVA Jichai Power Generator with Cheap Chinese Engine

1000kVA Jichai Power Generator with Cheap Chinese Engine

1000kVA Jichai Power Generator with Cheap Chinese Engine
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

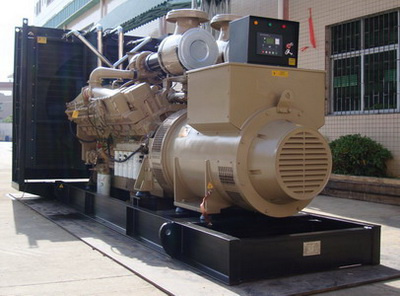

1000kVA Jichai Power Generator With Cheap Chinese Engine


1000KVA Jichai Open Type Power Generator:
GENSET MODEL: Jichai Power Generator

1. China made large power generator
2. CE Certificate
3. ISO9001-2008 Certificate
4. Compact structure
5. Easy for operation.

Jinan Diesel Engine Co. (Jichai) is the only internal-combustion engine manufacturer. 190 series adopts advanced design idea and introduces advanced technology. Featured with good economic performance, small volumn, compact structure, great power, diesel design can operate reliably with good dynamic performance.
Technical specification of Jichai Open Type Power Generator
Technical data
Genset Model BJX1000
  Prime Power  1000KVA
Rated Voltage 400/230V
Frequency 50Hz
Power Factor 0.8(lagging)
Dimension (L× W× H) (mm) 5800× 1750× 2900
Genset weight (kg) 10000
Diesel Engine
Brand Jichai
Model Z12V190B
Number of Cylinders 12
Rotating Speed 1500RPM
Cylinder Arrangement 60° Vee
Cycle Four stroke
Aspiration Turbocharged
Bore× Stroke(mm) 190× 210
Displacement(L) 71.45
Compression Ratio 14.0: 1
Speed Governor Mechanical
Cooling System Water-cooled
Fuel Consumption at 100% Load 205g/kwh(at 1500RPM)
Starting Method DC24V Electrical starting
Alternator
Brand Kaijieli(China-French joint venture Leory Somer technology)
Model TWGII404E
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, " Y" type connecting
Number of Bearing 1
Protection Grade IP22
Altitude ≤ 1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating
Insulation Class, Temperature Rise H/H
Telephone Influence Factor (TIF) ≤ 50
THF ≤ 2%
Voltage Regulation, Steady State ≤ ± 1%
The components of the genset
(1) JichaiDiesel Engine;                   (2) KaijieliAlternator;                 (3) AMF control panel
Control Panel
The control panel is AMF control panel, with the display of voltage, current, frequency, water temperature, oil pressure. The genset with low oil pressure, high water temperature, over speed, over load protection function.

Prod Model: BJX1000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power: 1000kVA
Rated Voltage: 400/230V
Rated Speed: 1500/1800rpm
Rated Frequency: 50/60 Hz
Power Factor: 0.8 (Lagged)
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic Diesel Generator
Output Type: AC Three Phase
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.

BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.

In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.

BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.

BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
