Home Generator Products 1000kVA Cummins Diesel Generator (60Hz)

1000kVA Cummins Diesel Generator (60Hz)

1000kVA Cummins Diesel Generator (60Hz)
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

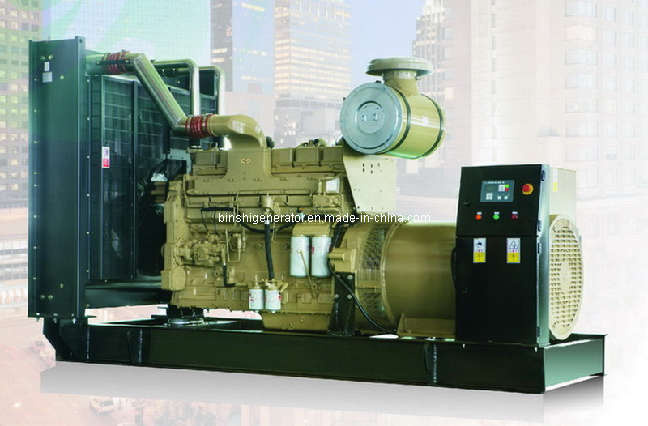

1000kVA KTA38-G4 Cummins Diesel Generator set
Genset model: BCX1000
Cummins diesel generator set is one of the most competitive products for Binshi.
Binshi is one of Cummins OEM manufacturers in China.
Cummins engine is one of the most popular power all over the world.

Characteristics of Cummins Engine:
(1) Cummins diesel generator set of basic design features:
Cummins diesel generator set cylinder design rugged, vibration small, noise is small; In-line six-cylinder four-stroke, smooth operation, high efficiency; Replace the wet cylinder sleeves, long life, easy maintenance; A two-cylinder cover, four valves per cylinder, intake full, mandatory water-cooled, thermal radiation is small, performance.
(2) Cummins diesel generator fuel system:
Cummins PT fuel system patented and unique overspeed protection devices; Low-pressure pipelines, pipe a small, failure rate is low, high reliability; High-pressure injection, burning fully. Equipped with a fuel oil supply and oil return one-way valve, the use of safe and reliable.
(3) Cummins diesel generator set Intake:
Cummins diesel generators are installed with dry-type air filter and air resistance indicators, the use of exhaust gas turbochargers, intake adequate performance is guaranteed.
(4) Cummins diesel generator set exhaust system:
Cummins diesel generator set using pulse dry-type exhaust pipes, which can effectively use exhaust gas energy, give full play to the engine performance; Unit has built for the 127mm diameter exhaust pipe and exhaust bellows, easy to connect.
(5) Cummins diesel generator cooling system:
Cummins diesel generator set engines used gear within the mandatory water-cooled centrifugal water pump, large flow channel design, good cooling effect, which can effectively reduce the thermal radiation and noise. A unique spin-mounted water filter, to prevent rust and corrosion, control the acidity and remove impurities.
(6) Cummins diesel generator set Lubrication system:
Variable flow oil pump, with the main oil-Road signal tube, the main oil path according to oil pressure to adjust the fuel pump to optimize access to the engine's oil production; Low oil pressure (241-345kPa), these measures can effectively reduce the pumping power loss to improve power, improve engine fuel economy.
(7) Cummins diesel generator set power output:
In the shock absorber can be installed before the dual-slot power output of the crankshaft pulley, Cummins diesel generator set is equipped with multi-slot front of the annex to drive pulley, can take a variety of front-end power output device.

AC Alternator
(1) Brand: Leroy-somer, Marathon, Stamford and Engga(optional)
(2) Excitation method: Brushless self-excitation
(3) Insulation grade: H
(4) Protection grade: IP21-IP23
(5) Electromagnetic interference: THF<2%, TIF<50
Brand   Binshi/Cummins
Genset Model   BCX1000
Prime Power(KW/KVA) 910/1138
Standby Power(KW/KVA) 1000/1250
Type   Open
Rated Current(A) 1700
Frequency (HZ) 60Hz
Length*Width*Height(mm) 4600X2060X2200
Weight(KG) 9650
Engine Model   KTA38-G4
Prime Power (KW)   880
Standby Power (KW) 970
Displacement(L) 38
Inspiration Method:   Turbo/Aftercooled
Cylinders   12, V60
Speed(rpm)   1800rpm
Bore*Stroke(mm) 159X159
Engine Model   13.9
Governing Method   EFC
Fuel Consumption Rate g/KW. H 210
Fuel Consumption (L/h) 201
Oil Capacity (Litre)   135
Max. Oil Temperature(centigrade) 121
Coolant Capacity(Litre) 194
Max. Air Intake Pressure(kPa) 6.2
Air Consumption (m3/min) 1825
Max. Air Intake Pressure(kPa) 10
Air flow(m3/min) 55.2
Exhaust Temperature(centigrade)   528
Diameter of Air Intake Pipe (inch) 6
Max. Water Temperature (centigrade) 100
Thermostat temperature(C) 82-93
Alternator
Alternator Model   LSA50.2S4
Excitation method
Input Voltage (V) 480/227
Voltage Regulation ± 6%
Steady-State Adjusting Range   ± 1%
Insulation Class   H
Protection Class   IP213
Power Factor   0.8 lagging
Connection   3P4W
Ventilating and cooling Capacity(13/s) 1035
Rated Capacity (V) 24
Controller Model   Deepsea/ DSE7320
Indication   Overspeed\oil compressure\water temperarue\recharging failure \failure alarm etc.
Main Functions   High-tem water\low oil pressure\overspeed\start failure\manual start and control\remote start and control.

Prod Model: BCX1000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Self-Starting Diesel Generator
Output Type: AC Three Phase
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.

BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.

In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.

BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.

BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
