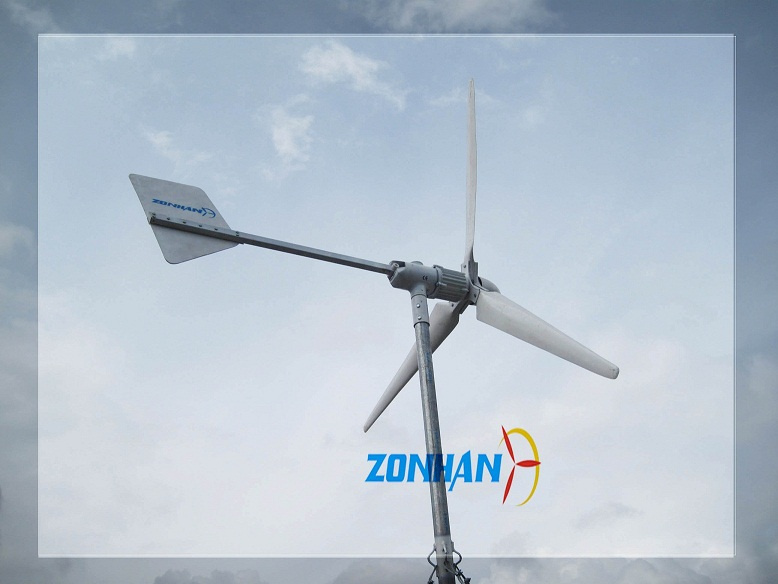

1.5kw wind turbine technology index:
Model: ZH1.5KW
Rated Power: 1500 Watts
Maximum Power: ~ 1800 Watts
Type: 3 Blade Upwind
Rotor Diameter: 3.2 m (10.4ft. )
Start-up Wind Speed: 2.5 m/s(5.6 mph)
Cut-in Wind Speed: 3m/s (6.7mph)
Rated Wind Speed: 10 m/s(22mph)
Cut-Out Wind Speed: None
Furling Wind Speed: 18 m/s (40mph)
Max. Design Wind Speed: 50 m/s (112mph)
Blade Pitch Control: None, Fixed Pitch
Overspeed Protection: Auto Furl
Gearbox: None, Direct Drive
Temperature Range: -40 to +60 Deg. C (-40 to +140 Deg. F)
Generator: Permanent Magnet Alternator
Output Form: 24VDC, 48 VDC Nominal
|
Rotate Speed(r/min) |
VDC |
Amp |
WATT |
|
145 |
28 |
|
|
|
188 |
28 |
4.6 |
128.8 |
|
219 |
28 |
11.6 |
324.8 |
|
255 |
28 |
19.2 |
537.6 |
|
282 |
28 |
25.7 |
719.6 |
|
303 |
28 |
31.2 |
873.6 |
|
331 |
28 |
36.1 |
1010.8 |
|
361 |
28 |
41.7 |
1167.6 |
|
404 |
28 |
47.4 |
1327.2 |
|
457 |
28 |
53.1 |
1486.8 |
|
501 |
28 |
64.6 |
1808.8 |
Yueqing Zonhan Windpower Co., Ltd.Was founded in China with the purpose of supplying people with the knowledge and tools necessary to generate ecologically friendly electricity through the use of wind turbines.
Recognizing the needs of the small wind market, Zonhan has directed its creative expertise to developing wind generators for homeowners, farmers, manufacturers and business proprietors who are looking for a cost-effective and environmentally friendly energy source.
Zonhan develops and manufactures revolutionary small wind energy systems, offering the cost-efficient and easily customized wind power solutions for grid and off-grid applications worldwide.
Our cutting edge technology and in-house expertise allows us to offer the most reliable and cost-saving wind power turbines to fulfill consumer, business and industrial needs, at the highest performance available today.
