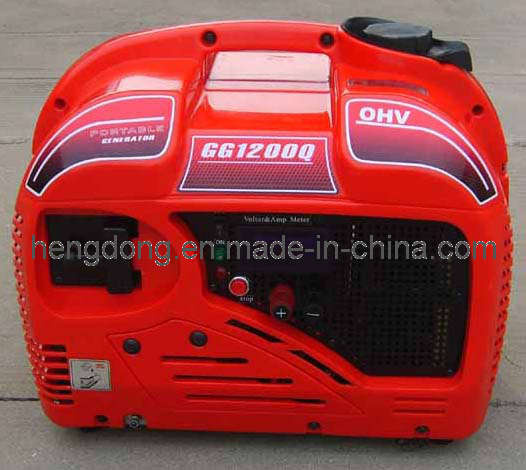

1.2KW DC & AC 2 in 1 Gasoline Generator HG1200AD, with CE, GS, EPA certificate. Suitable for camp, yacht, home use. Easy to carry.
Based on the features of power supply to 3G base station, HENGDONG Power specially developed this outdoor DC&AC Generator for base station use. This new type breaks through the single mode of DC or AC in traditional gasoline generator. It can not only supply AC power for home appliance, but also charge the battery.
|
DC-Generator |
MODEL |
HG1200AD |
|
Type |
Permanent magnet, brushless, bearing-less |
|
Voltage Regulate |
Automatism electronic regulate |
|
Rated Dc Output |
1.0KW |
|
Max Dc Output |
1.2KW |
|
Voltage output regulation |
0.5-1.0DCV |
|
Ripple quotiety |
150mV (when connecting on the battery) |
|
Rated Dc Voltage |
12/24/36/48VDC |
|
Rated Current |
72/38.5/26/20A |
|
Run output Dc Voltage |
14.5/28/39/52.5V |
|
AC-Generator |
Voltage Regulate |
Automatism electronic regulate |
|
Rated Ac Output |
1.0KW |
|
Max Ac Output |
1.2KW |
|
Frequency |
60/50Hz |
|
Rated Ac Voltage |
120 or 220V |
|
Gasoline Engine |
Model |
HD154FA |
|
Type |
OHV Forced Air-cooled, 4-Stroke |
|
Bore× Stroke |
1-54× 38mm |
|
Air cleaner |
Semi-dry double silent type |
|
Cooled way |
Air-cooled |
|
Displacement |
80.7ml |
|
Compression ratio |
7.0: 1 |
|
Max torque |
4.0/3200 N. m / rpm |
|
Ignition system |
Non-contact transistorized ignition(T. C. I) |
|
Spark plug gap |
0.7mm |
|
lubricating oil |
SF or Higher Grade |
|
lubricating oil capacity |
0.4L |
|
Lubrication system |
Pressure Splash |
|
Fuel consumption |
438(g/HP-hour) |
|
Power output |
2.5/3600(HP/ rpm) |
|
AC& DC-Generator-Set |
Fuel |
Unleaded gasoline |
|
Starting system |
Recoil and hand-operated |
|
Noise level |
60(7m)dB(A) |
|
Oil alarm |
No lube oil Auto stop safekeeping |
|
continuous operating |
9h |
|
Fuel capacity |
5.5L |
|
Front panel control system |
One-AC Output Socket One-DC Output Socket AC Output Pilot lamp, DC Output Pilot lamp. Over loading protect& Malfunction Pilot lamp |
|
Dimension L× W× H |
460*370*390mm |
|
Gross/ Net weight |
20/22kg |
|
Unit(20FT) |
380 |
