Prod Model: |
LY-35 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Place Of Origin:T Jiangsu China: |
Brand Name:T Lingyu |
Output Type:T AC Three Phase: |
Speed:T 1500/1800/3000/3600rpm |
Frequency:T 50/60Hz: |
Rated Power:T 100kw |
Rated Voltage:T 110~570V: |
Rated Current:T AMPS |
Payment Terms:T T/T L/C Credit: |
Fan:T Aluminum Fan |
Type: |
Basic Diesel Generator |
Installation Method: |
Portable |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Single Phase |
Product Description
Packaging & Delivery
Packaging Detail: | generator standard exporting package |
Delivery Detail: | within 5-25working days after the deposit |
Specifications
1)manufacturer
2)open type/silent/trailer
3)global warranty
4)CE,ISO,SGS,SONCAP,OEM
5)in stock
Reliable manufacturer !!! CE approved 8KVA-2500KVA generator with cummins/ Yuchai/Deutz/Ricardo/Perkins/Volvo and so on brands
Product Description

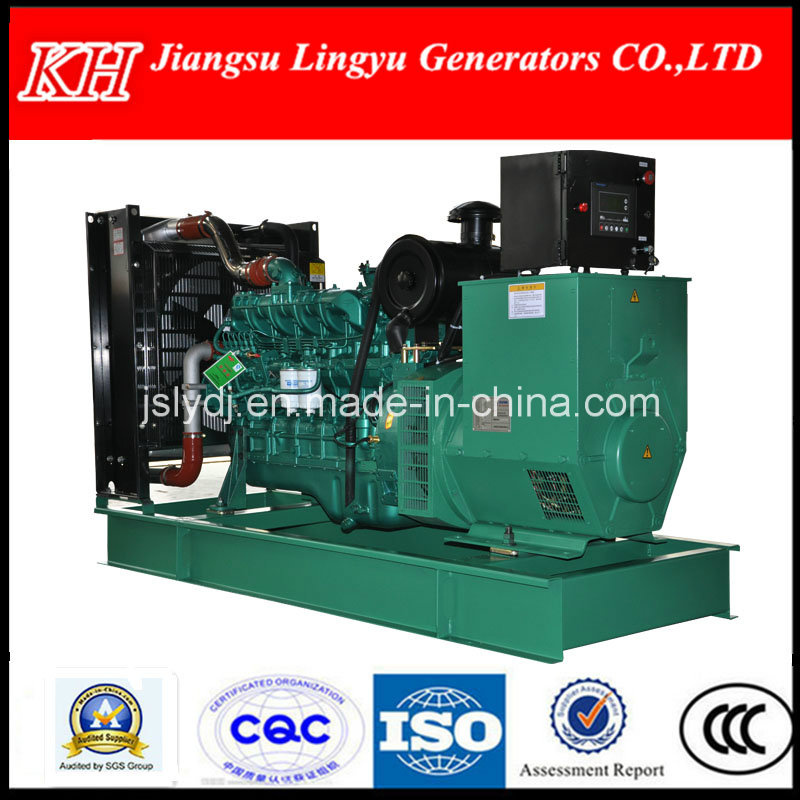

The specification of power generator :
1. power generator powered by Yuchai diesel engines respectively in China.
2. power generator equipped with famous alternators.
3. power generator strict tests before sale.
4. power generator features at low oil consumption, stable performance, easy maintenance, low operation cost, low emission.
Genset model | LY |
Type | open/sound proof/weather proof |
Genset output power range | 20-800kw |
Rated voltage | 220/380V,230/400V,240/415V,120/240V |
Frequency | 50/60HZ |
Power factor | 0.8 |
Rated speed | 1500/1800rpm |
output type | AC three phase/single phase |
Motor | brushless |
Frequency | <3% |
Frequency at stable state: | <0.5% |
Frequency deviation at instantaneous state | ≤+10% |
Frequency return time | ≤3s |
Voltage deviation at stable state | ≤±1% |
Voltage deviation at instantaneous state | ≤+20% |
Voltage return time | ≤4s |
Voltage modulation | ≤0.3% |
The specification of Yuchai diesel engine:
diesel genset | diesel engine | alternator |
model | power(kW) | power(kVA) | model | power(kW) | model | power(kW) |
KH20GF | 20 | 25 | YC2115D | 27 | KHI20-14 | 18 |
KH30GF | 30 | 37.5 | YC2115ZD | 33 | KHI30-14 | 25 |
KH40GF | 40 | 50 | YC40D60-21 | 44 | KHI40-14 | 34 |
KH50GF | 50 | 62.5 | YC4D85Z-D20 | 60.5 | KHI50-14 | 40 |
KH70GF | 70 | 87.5 | YC6B100-D20 | 73.5 | KHI70-14 | 58 |
KH90GF | 90 | 112.5 | YC6B135Z-D20 | 99 | KHI90-14 | 80 |
KH100GF | 100 | 125 | YC6B155L-D21 | 113 | KHI100-14 | 96 |
KH120GF | 120 | 150 | YC6B180L-D20 | 132 | KHI120-14 | 112 |
KH140GF | 140 | 175 | YC6A200L-D20 | 145 | KHI140-14 | 128 |
KH150GF | 150 | 187.5 | YC6A230L-D20 | 170.5 | KHI150-14 | 144 |
KH200GF | 200 | 250 | YC6M285L-D20 | 211.2 | KHI200-14 | 180 |
KH250GF | 250 | 312.5 | YC6M350L-D20 | 258.5 | KHI250-14 | 240 |
KH280GF | 280 | 350 | YC6MK390L-D21 | 286 | KHI280-14 | 250 |
KH300GF | 300 | 375 | YC6MK420L-D20 | 309 | KHI300-14 | 280 |
KH320GF | 320 | 400 | YC6MJ480L-D20 | 352 | KHI320-14 | 300 |
KH400GF | 400 | 500 | YC6T550L-D21 | 405 | KHI400-14 | 360 |
KH400GF | 400 | 500 | YC6T600L-D22 | 441 | KHI400-14 | 360 |
KH460GF | 460 | 575 | YC6T660L-D20 | 485 | KHI460-14 | 400 |
KH500GF | 500 | 625 | YC6T700L-D20 | 515 | KHI500-14 | 450 |
KH700GF | 700 | 875 | YC6C1020L-D20 | 748 | KHI700-14 | 600 |
KH800GF | 800 | 1000 | YC6C1170L-D20 | 858 | KHI800-14 | 728 |
The specification of Yuchai diesel engine:
Model | YC2115D, YC2115ZD, YC40D60-21, YC4D85Z-D20, YC6B100-D20, YC6B135Z-D20 , YC6B155L-D21 YC6B180L-D20, YC6A200L-D20, YC6A230L-D20, YC6M285L-D20 ,YC6M350L-D20, YC6MK390L-D21, YC6MK420L-D20, YC6MJ480L-D20, YC6T550L-D21, YC6T600L-D22, YC6T660L-D20, YC6T700L-D20, YC6C1020L-D20, YC6C1170L-D20 |
Cooling Method | water cooled |
Rotating speed | 1500/1800rpm |
Governor system | electrical or mechanical governor |
Aspiration mode | natural aspirated or turbocharged |
Starting method | 12/24V DC electric starting |
Stroke | 4 stroke |
The specification of alternator:
Brand | Stamford, Leroy semor, Maraton etc. |
Regulator | AVR automatic voltage regulating |
Excite type | pret or shunt |
Connecting type | 3PH star, 3PH-DELTA |
Steady frequency change | 0-5% |
No load voltage | ≥95%-105 |
Steady voltage | ≤±1 |
Insulation degree | H degree |
Exclosure degree | IP23 |
power generator features:
1. Yuchai industrial diesel engine
2. Radiator 40°C max,fans are driven by belt, with safety guard
3. Choice of manual/auto and AMF control panels and protection systems
4. Digital auto-start panel
5. Anti Vibration Suspension Absorber
6. Dry type air filter, fuel filter, oil filter
7. Mould case circuit breaker
8. 24V DC start motor and storage battery
9. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
power generator use of safety norms
1.Operators sould be familiar with the operation of generating units, operating methods, and all control bodies, manual valves, stopping body position.
2.In the engine room or near the unit, must hoisting of danger notices warning signs associated personnel:
(1)Uints exist electric shocks danger;
(2)Uints exist scald danger;
(3)Units exist winding, and collision dangers;
3.To avoid fuel, lubricants, and other fire, engine room No smoking.
4.Engine room or other nearest shouldmaintain an appropriate level of fire service equipment (proposed CO2 fire extinguishers).
5.Grounding the entire unit reliably, and meet the applicable requirements of neutral grounding.
6.Above and around the unit should not be unrelated equipment, obstructions and dangerous goods, should be keeping the floor dry and clean without oil.
7.Units will be run by noise, suggest that the staff wear suitable protective equipment, such as earmuffs vehicles.
8.Before any maintenance, must cut off all power lines, particularly the Dcpower supply circuit (remove the battery's anode and cathode), the warning signs must also note "is maintenance", and should have another concern, especially in the narrow region maintenance at the same time should be nitified stop all of this unit operation.
9.To the reliable operation of unit, the settings of unit voltage, frequency, speed and other related parameters and unit controller set up should not be arbitrarily changed except the specialized operators.
10.Units are valuable equipment, for personal safety, operation stability to light, no illegal operation and drink operation.
Plywood packing case,fumigation-free .
Shipping :Not more than 7days since get full payment in Shanghai Port .
Best quality Best service with Competitive price
Start your internet business with us here
The best power support for your future life
? Guarantee/Warranty And After-sale Service
ALL ANSWER IS YES!!!
? one year guarantee for whole machine except of tube and lens,yes
? 24 hours technical support by e-mail,yes
? calling or door-to-door service,yes
? use-friendly English software,user manual and detailed Videos/CD,yes
To know more details, please feel free to contact us by the following way:
FAX:0514-86827818
TEL:0514-86826088
MOBILE:+86-15052559798
Jiangsu Lingyu Generator Co., Ltd. (hereinafter referred to as "Lingyu") is professional manufacturer of synchronous brushless alternators and diesel generating sets. Our workshop covers 100, 00sqm, and supply capacity can over 8000 units per year. And we are two hours away far from Shanghai port.
Lingyu produces Stamford type brushless alternators, range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800rpm, voltage 110V-690V, class H, IP23, all easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc, and our alternator are widely used in industry, commercial, real estate, hospital, hotel, railway, telecommunications, data-centers and mining etc.
Lingyu people treat Quality and Service as enterprise' S life, and has competitive advantages
1) Filters reliable suppliers with quality materials,
2) 100% quality copper wire, bearings, etc,
3) Strict Quality Control by QC. Dept.
4) comformity to IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
Certified of CCC, CE, TUV, EPA, SGS
5) 2 years warranty-the first supplier who can offer in China.
6) Ships general parts within 3days upon customer' S complaint
Lingyu generators are being exported to Europe, Africa, and many other regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to Lingyu.
