| Prod Model: |
NL-50KXL |
| Markets: |
North America,South America,Eastern Europe,Africa,Mid East,Western Europe |
| Name: |
50kw Wind Power Generator |
| Rated Power: |
50kw |
| Maximum Power: |
58kw |
| Start Wind Speed: |
3.0 M/S |
| Safety Wind Speed: |
60 M/S |
| Blade Number: |
3 |
| Output Voltage: |
AC380V |
| Blade Material: |
Gfrp Strengthening |
| Design Service Life (Years): |
15~20 |
| Weight: |
3000kg + Wooden Case |
| Rotating Shaft: |
Horizontal |
| Number Of Blade: |
Multiple-Blade |
| Stress Way Of Blade: |
Lift Force |
Product Description

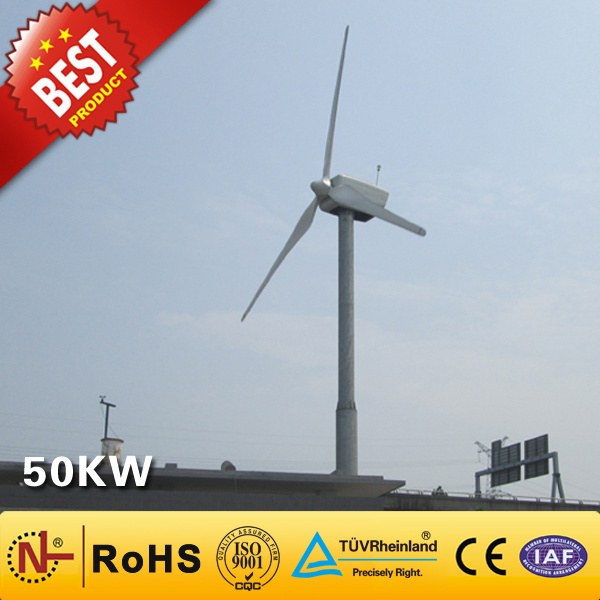

Wind Turbine / Wind Power Generator (50kW)
1) Host adopts FRP engine case, the modelling beautiful, good heat dissipation performance.
2) All key parts are from international famous brand, the brand to ensure quality.
3) Saving asynchronous parallel design of grid inverter, and also to prevent the risk of inverter selection test.
4) The ground control cabinet of the touch screen.
5) Can Mobile phone remote monitoring.
For more information, Please contact the sales engineer.
We will reply immediately.
|
Model |
NL-50KXL |
|
Rated power |
50kW |
|
Maximum power |
58kW |
|
Output voltage |
380V |
|
Started wind speed |
3 m/s |
|
Rated wind speed |
13 m/s |
|
Cut-out wind speed |
20 m/s |
|
Safety wind speed |
60 m/s |
|
Rotor diameter |
16.4m |
|
Blade number |
3 |
|
Blade length |
8m |
|
Blade weight |
300Kg |
|
Blade material |
FRP strengthening |
|
Tower height |
24m |
|
Generator |
Asynchronous |
|
Main braking system |
Blade pitch contrd |
|
Second braking system |
High speed shaft brake disc |
|
Protection grade |
IP55 |
|
Noise level |
≤55dB |
|
Insulation class |
F |
|
Operation mode |
Automatic or manual |
|
Braking mode |
Fan brake, Generator braking, Yaw damper brake |
|
Surface antisepsis |
multi-layers paint |
|
Control System |
PLC with remote monitoring |
|
Temperature |
-20 ~ 50 degree centigrade |
|
Design service life |
≥15 years |
|
Lubrication |
Splash pressure lubrication |
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
