| Prod Model: |
H9.0-20000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rotating Shaft: |
Horizontal |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Resistance |
Product Description
China made hummer permanent magnetic generator.

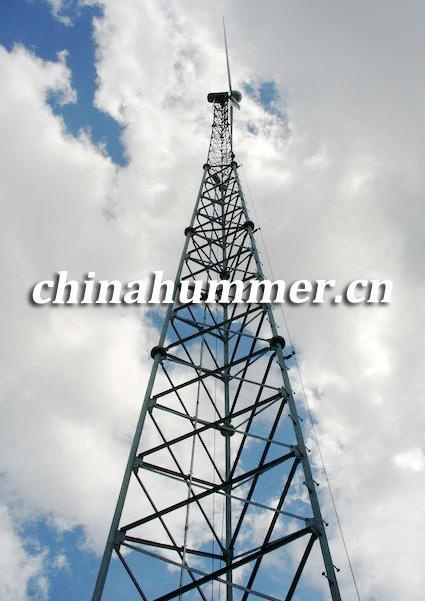

Hummer h9.0-20000W wind turbine features high efficiency and low rated wind speed introducing several patented technologies and some special materials.
All the off-grid wind turbines are matched with wind-solar hybrid inverter controller, which can connect solar panel within 5000W simultaneously. Please contact us for the detail.
The off-grid wind turbine is matched with 25PCS 12VDC batteries in series, and grid-tied system can connect to state grid with the help of hummer grid-tied inverter.
|
Rated power(W) |
20000 |
|
Maximum output power(W) |
28000 |
|
Charging voltage (V) |
DC 240 |
|
Blade quantity |
3 |
|
Rotor blade material |
GRP |
|
Rotor blade diameter(m) |
9.0 |
|
Start-up wind speed (m/s) |
3.0 |
|
Rated wind speed (m/s) |
11.5 |
|
Rated rotating rate (r/min) |
180 |
|
Wind energy utilizing ratio (Cp) |
0.4 |
|
Generator output |
Single-phase frequency conversion AC |
|
Rated charging current (A) |
83.3 |
|
The maximum charging current (in a short time )(A) |
120 |
|
Output AC frequency (Hz) |
0~360 |
|
Generator efficiency |
> 0.85 |
|
Free standing tower diameter(mm) |
1050*750 |
|
Tower height(m) |
16 |
|
The weight of generator(kg) |
496 |
|
Battery 12V 150Ah/200Ah |
20pcs |
Anhui Hummer Dynamo Co., Ltd., is a professional wind generators manufacturer with high-tech in the field of wind energy. We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years of unremitting efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the new factory covers over 30, 000 square meters with the first workshop more than 3100 square meters has been put into use in August, 2007. There are more than 30 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
Hummer middle and small-sized wind generators including 400W, 500W. 1kw. 2kw. 3kw. 5kw. 10kw. 20kw, 30kw, 50kw, etc have acquired CE certificate. Meanwhile, Hummer wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer's wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional'. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be the best domestic manufacturer and service provider as well as a worldwide influential enterprise.
