| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Resistance |
| Rotating Shaft: |
Vertical |
Product Description

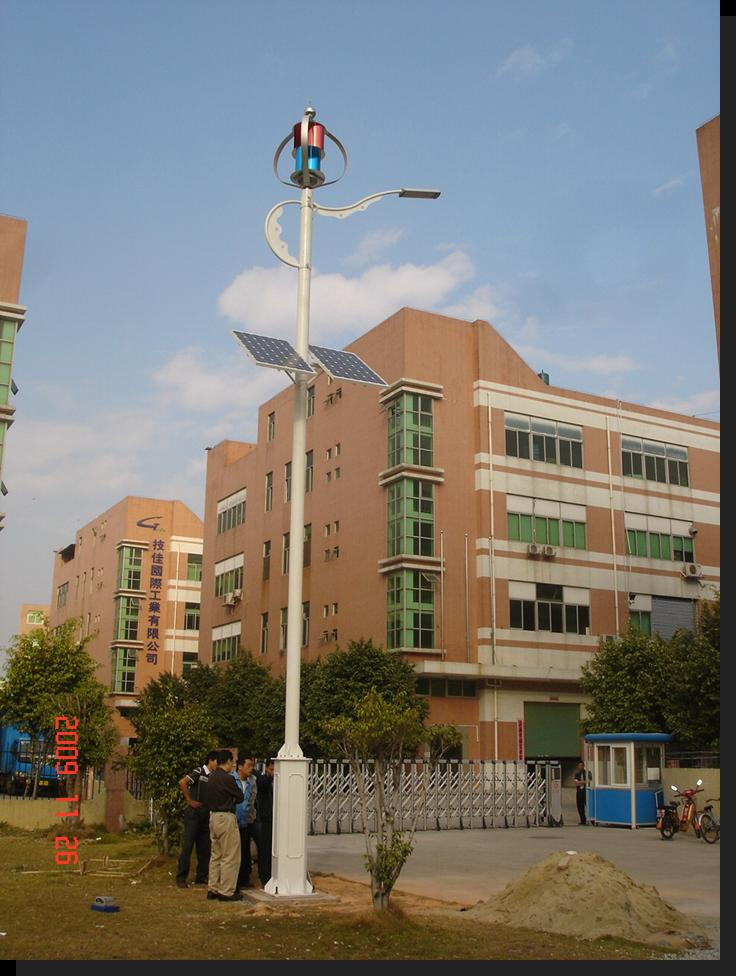

Vertical Axis Wind Turbine-600W
Vertical Axis Wind Turbine-600W.
The advantage as bellow:
1)Simple structure, reliable operation
2)Low loss, high efficiency power generation
3)Design gorgeous, smooth operation, long life
4)Less maintenance, low maintenance cost
5)Strong adaptability and can be used for land, beaches, such weak offshore wind Regional power, lighting
6)Do not pull wires, do not transformer.
Detail Parameter:
Rated power 600W
Dimension(height/diameter) 1.55M*1.06
Total weight 30KG
Blade material aluminium alloy
Blade number 3
Minimun wind speed 1m/s
Minimun power generation wind speed 1m/s
Minimun charge wind speed 2.5m/s
Rated wind speed 8m/s
Maximum out put wind speed 15m/s
Survive 60m/s
Generator type Maglev three phases
Controller output voltage 12V or 24V
Controller output current 20Amp
Controller braking system three phases short circuit by NFB brake/manul control
Ambient temperature -30~50 ° C
Shenzhen TIMAR wind energy and luminous energy Technology Co., Ltd is the pioneers of green energy technologies in China.
As a scientific and technological innovation-oriented enterprise, TIMAR has been committed to the development of new energy research, design, production, sales installation. Through self-developed Magnetic levitation technology, our company has develop the world's first magnetic levitation wind power generator, and innovative magnetic levitation technology and solar energy technologies will be combined to create a new type of scenery complementary systems, LED lighting street lamps, etc. Our products have a number of independent intellectual property rights and proprietary technology, and through the ISO9001 quality system certification.
The company has participated in many national, provincial and municipal energy conservation technology research projects. So far, Tamar Science and Technology in Taiwan, New Zealand, Singapore, Shenzhen, Australia and other places have implemented a number of new energy sources using the system works.
Scientific and technological innovation, so that we can be more energy-efficient, more scientific, more environmentally friendly way of life into green power. We hope to use their own perseverance and efforts to create harmony between development and environmental protection, for us to create a better tomorrow.
